Rogers Brothers
SP100DS 100-Ton Modular
Custom Series Series
Capacity
100 Ton
Axles
3-Axle
Deck Length28 ft
About This Trailer

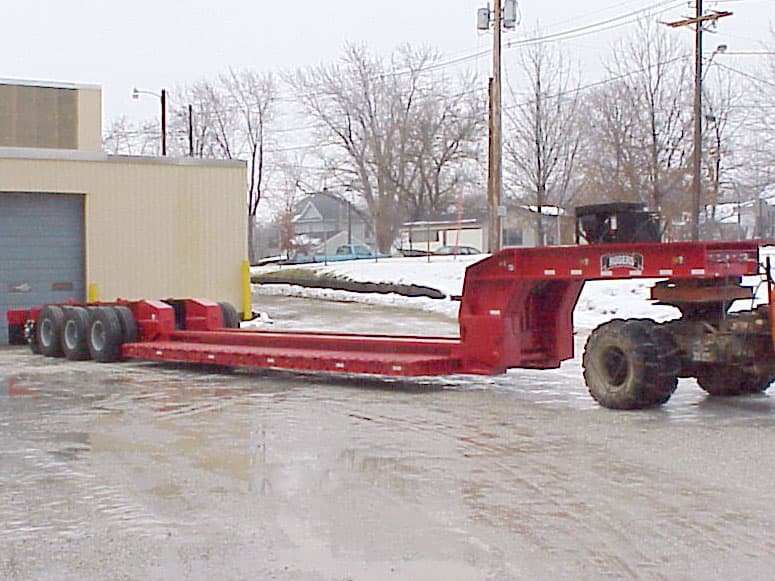

This SP100DS is a 100-ton capacity drop side deck lowbed with a detachable rear frame – deck styles can be interchanged. Its running gear is 3 axles on heavy-duty spring/walking beam suspension and a removable 4th axle on air ride suspension.
Full Specifications
Capacity
Capacity100.0-ton
Concentrated Load200,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length28'-0"
Deck Width10'-0"
Deck StyleDrop Side
Running Gear
Axles3+1 axles
Axle Type30,000 lbs. capacity with oil-bathed bearings
Suspension90,000 lb. capacity tri-axle severe-duty spring walking beam
Tires12.00 x 20(J)
Wheels20" spoke type with 20 x 8.00 rims
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Rear
Trailer UseModular
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
