Rogers Brothers
SP100PL-4XDRCS 100-Ton Modular
Custom Series Series
Capacity
100 Ton
Deck Height
24"
Axles
4-Axle
Deck Length26 ft
About This Trailer

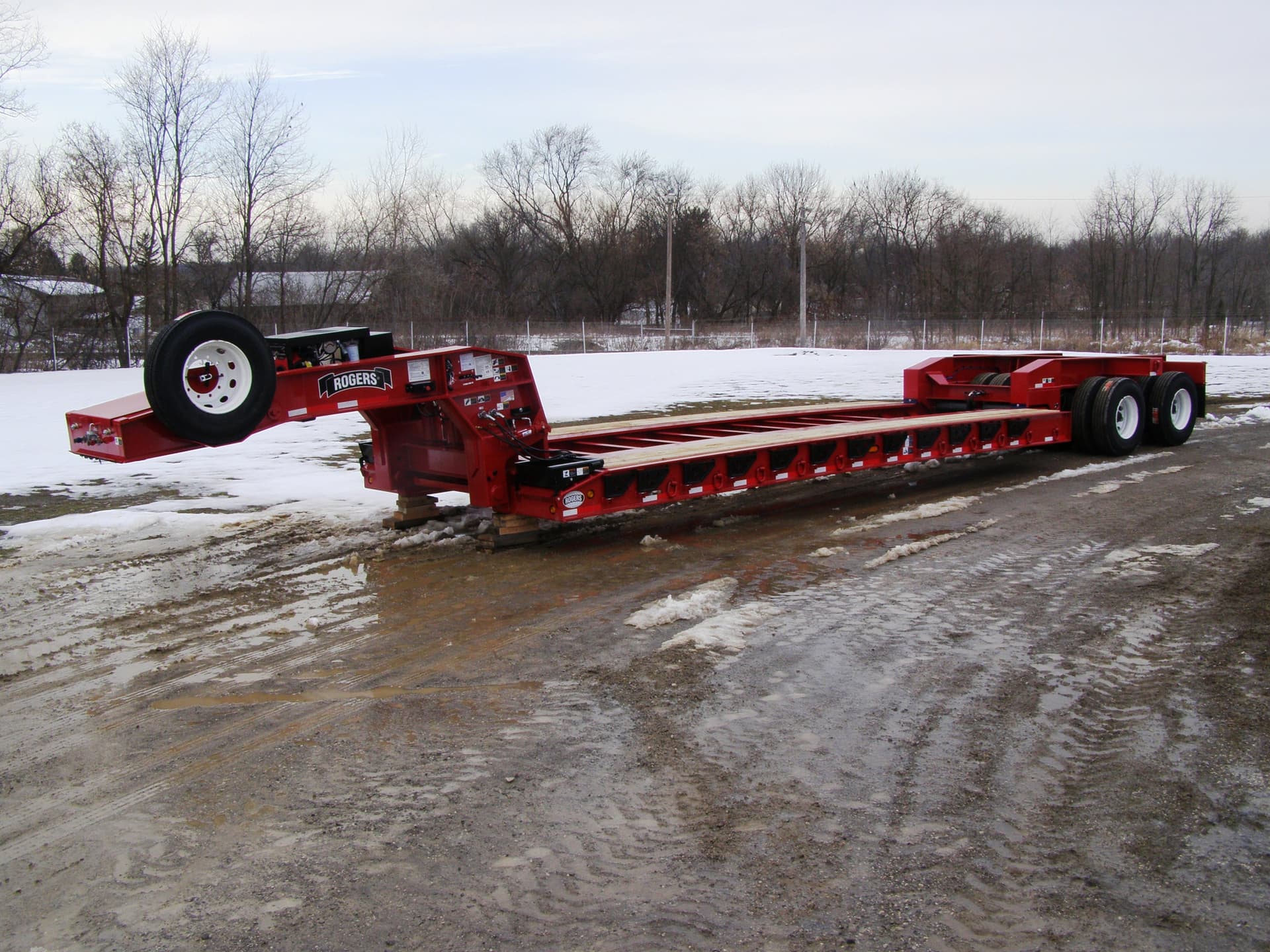

This SP100PL detachable gooseneck trailer has a hauling capacity of 100 tons (91 metric tons) concentrated in 1/2 the deck length. The modular design allows different deck styles to be interchanged with the existing platform deck. This trailer can be custom designed to best suit the customer's needs.
Full Specifications
Capacity
Capacity100.0-ton
Concentrated Load200,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length26'-0"
Loaded Deck Height24"
Deck Width11'-2"
Deck StylePlatform
Running Gear
Axles4 axles
Suspension80,000 kg capacity 4-axle cantilever (trunnion/walking beam) suspension unit
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Rear
Trailer UseModular
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
