Rogers Brothers
SP110IB 110-Ton Detachable Gooseneck
Custom Series Series
Capacity
110 Ton
Deck Height
36"
Axles
4-Axle
Gooseneck
Hydraulic Detachable
Deck Length85.3 ft
About This Trailer

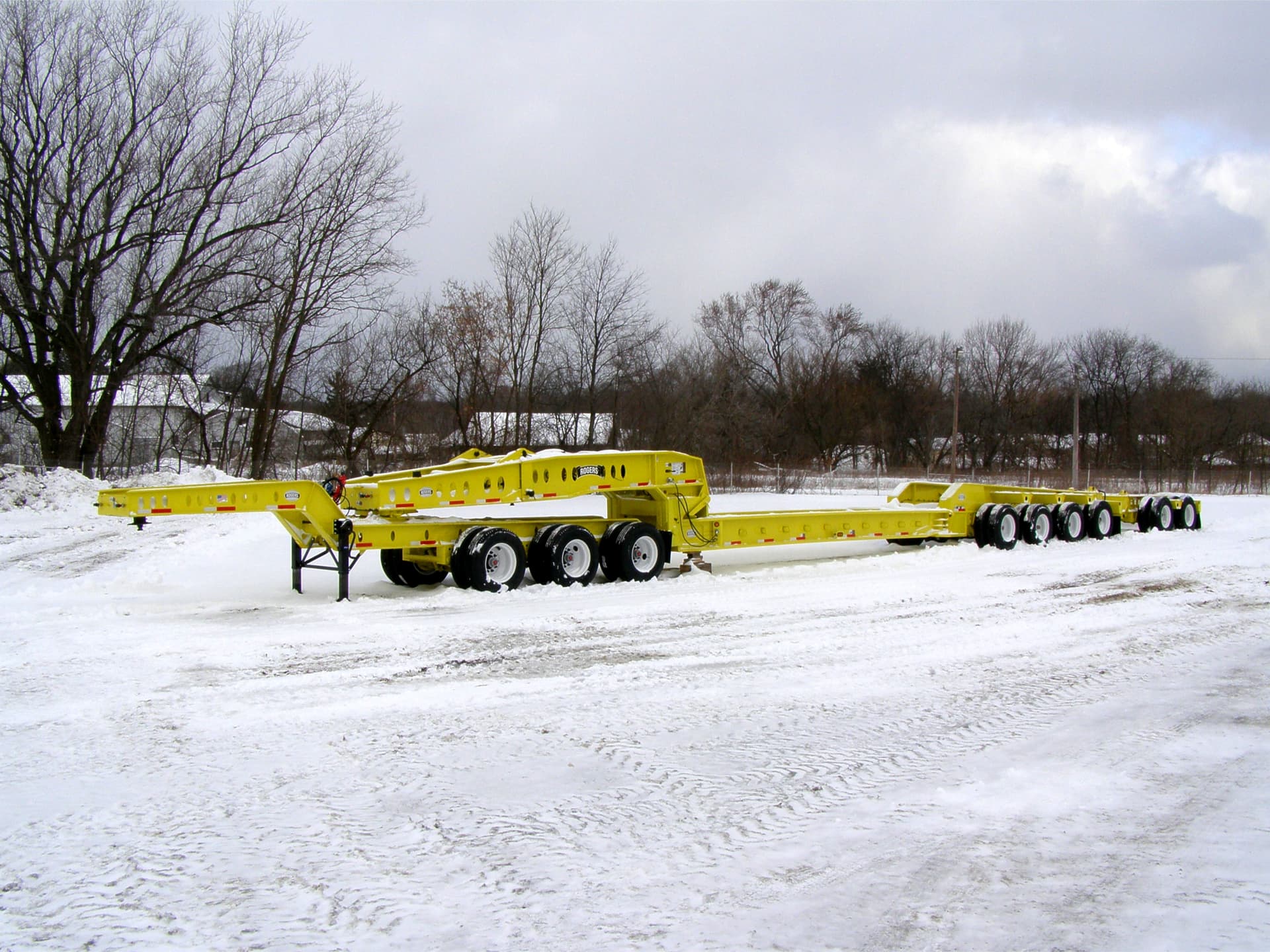

This 110-ton trailer was built to haul various pieces of mining equipment for a company in Latin America. The design includes a 100" gooseneck extension, an I-beam deck with booster assembly and and a removable/flip tandem axle rear bogie.
Full Specifications
Running Gear
Axles4+2 axles
Axle Type30,000 lb capacity on 4-axle rear frame with oil-bathed bearings, 25,000 lb axles on 2-axle rear bogie with oil-bathed bearings
Suspension30,000 lb capacity air ride suspension on 1st 4-axles with mechanical air height control; 25,000 lb capacity air ride suspension on tandem axle rear bogie
Tires11R22.5(H) tubeless radial
Wheels22.5 x 8.25 10-hole hub piloted steel disc
Brakes16 1/2" x 7" shoes, spring parking brakes (No ABS)
Capacity
Capacity110.0-ton
Concentrated Load220,462-pounds
Concentrated Load Length20'-0"
Dimensions
Deck Length85'-4"
Loaded Deck Height36"
Deck Width0'-0"
Deck StyleI-Beam
General
Trailer TypeSpecialized
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
