Rogers Brothers
SP35GR-FWGN 35-Ton Detachable Gooseneck
Custom Series Series
Capacity
35 Ton
Deck Height
20"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length24 ft
About This Trailer

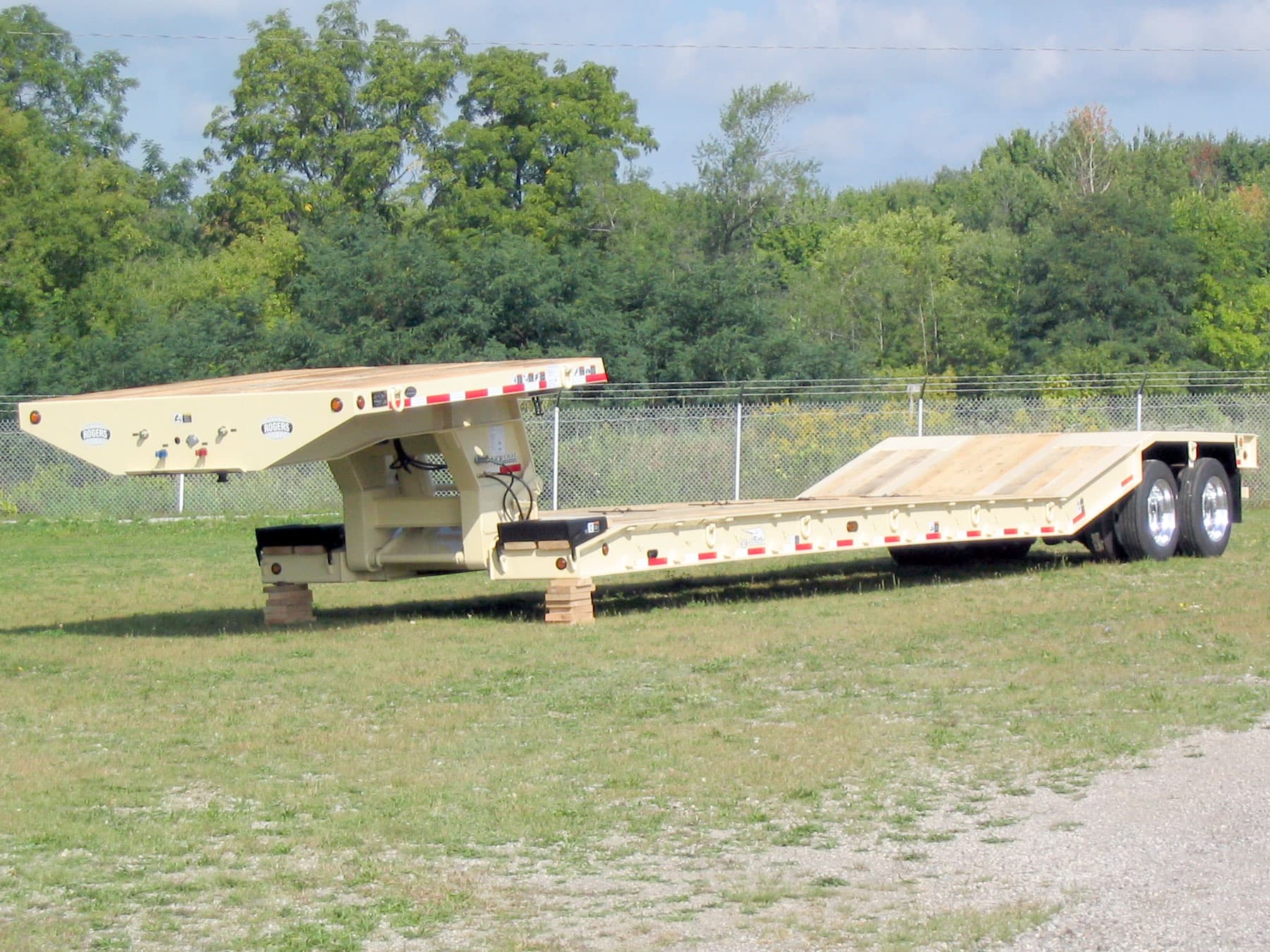

This lowbed is a ROGERS 35-ton "Gentle Riser" featuring a full-width (8'-6"W) platform on top of the "No Foot"® detachable gooseneck.
Full Specifications
Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height20"
Deck Width8'-6"
Deck StyleGentler Riser
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 aluminum outside/steel inside
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
