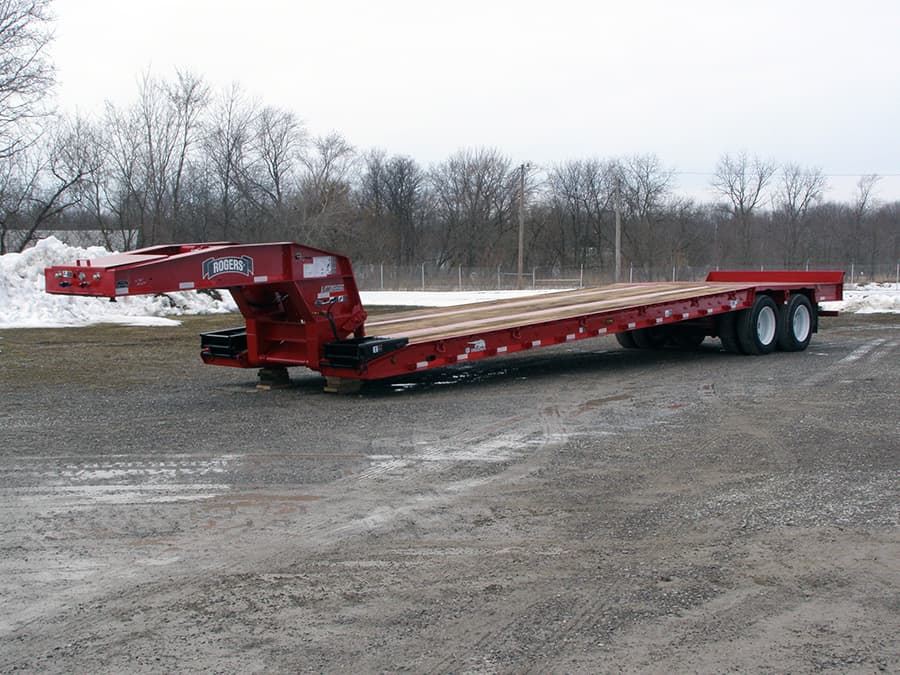

ROGERS SP35SL trailer
Rogers Brothers

SP35SL 35-Ton Detachable Gooseneck

Ultima Trailers Series

Capacity

35 Ton

Axles

2-Axle

Gooseneck

Hydraulic Detachable

Deck Length38 ft

About This Trailer

This 35-ton Sloper is noted for the deck with a gradual 5º incline which makes it a great working companion for paving equipment. The level rear frame is 10'-6" long including a 49" extension and reinforced 1/4" tread plate wheel covers. Standard features: No Foot Direct-Push style detachable gooseneck; Exclusive Croucher low, tapered fron with concealed beam hooks; Trap door extension blocks for adjusting 5th wheel height; Hydraulic power source: Tractor PTO; Full 2-inch air-dired oak decking; Lashing D's (5) each side of deck; Side bracket bearings only; US DOT-approved rear impact guard; Cable pull remote for air tank drain; Anti-lock Braking System; US DOT-approved LED rubber-mounted lights with sealed wiring and 7-wire socket; Rogers red or black industrial enamel finish coat.

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length19'-0"
Dimensions
Deck Length38'-0"
Deck Width8'-6"
Deck StyleSloper
Running Gear
Axles2 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
