Rogers Brothers
SP40PL 40-Ton Detachable Gooseneck
Ultima Trailers Series
Capacity
40 Ton
Deck Height
21"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length22 ft
About This Trailer

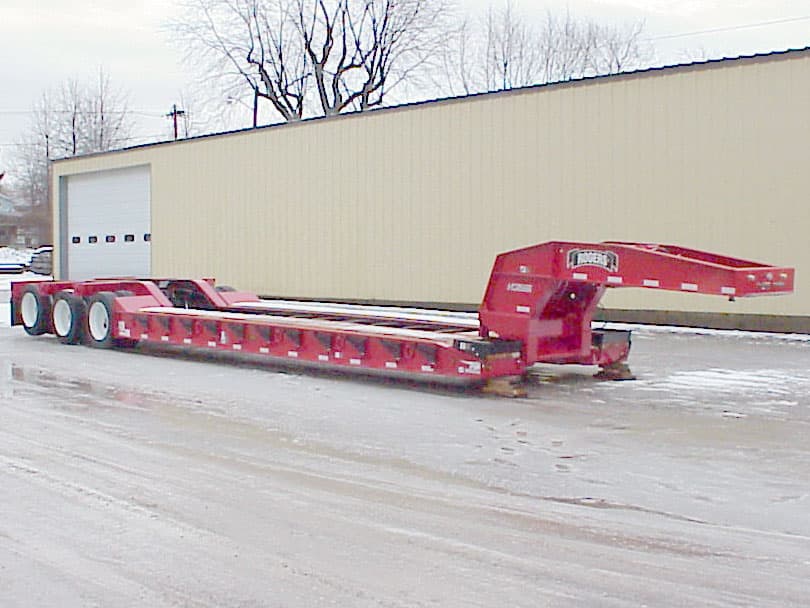

The SP40PL lowbed is a 40-ton capacity platform deck with the "Croucher"® front end. It can carry a load in half the deck length. This trailer was built with four 16" deep beams and no center boards -- for lighter overall weight.
Full Specifications
Capacity
Capacity40.0-ton
Concentrated Load80,000-pounds
Concentrated Load Length11'-0"
Dimensions
Deck Length22'-0"
Loaded Deck Height21"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
