Rogers Brothers
SP55DS 55-Ton Detachable Gooseneck
Ultima Trailers Series
Capacity
55 Ton
Deck Height
15"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
About This Trailer

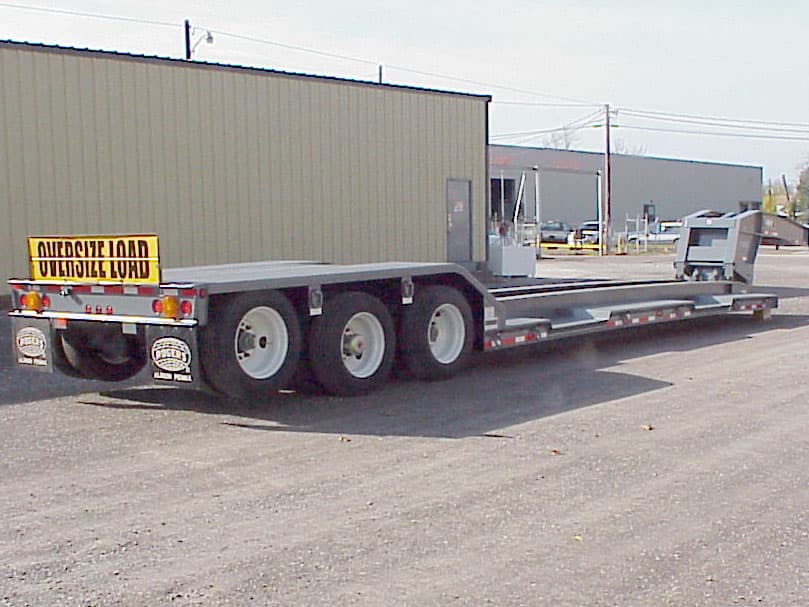

This is a 55-ton capacity ROGERS lowbed with a cambered drop side deck designed to carry its load in half the deck length. The powerful "No Foot"® Tower style gooseneck lifts using low hydraulic pressure. It has the award-winning ROGERS wheel wells for increased overhead load clearance.
Full Specifications
Capacity
Capacity55.0-ton
Concentrated Load110,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length26'-0"
Loaded Deck Height15"
Deck Width8'-6"
Deck StyleDrop Side
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
