Rogers Brothers

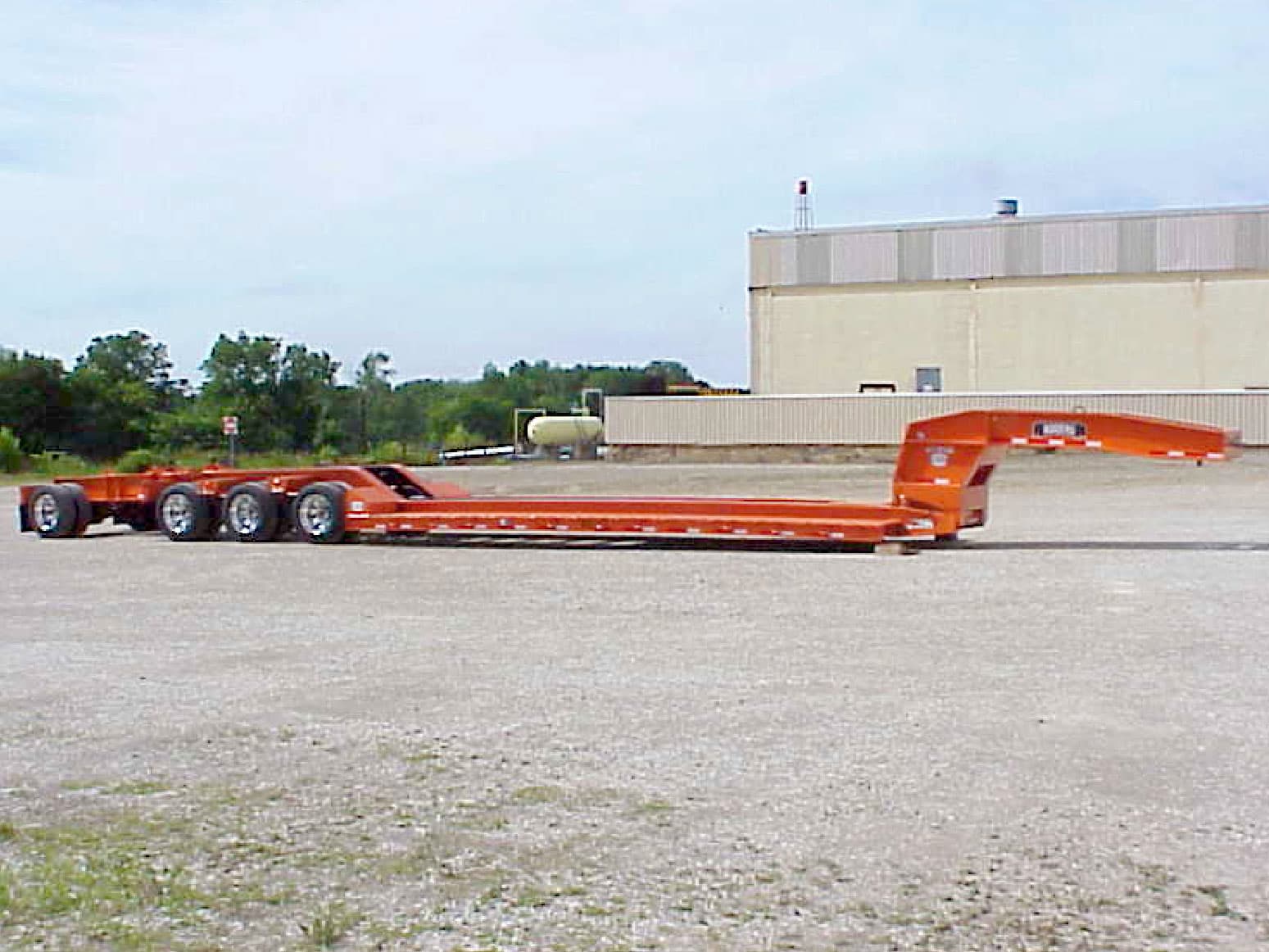

SP55DS-BA-R4 55-Ton Detachable Gooseneck
Custom Series Series
Capacity
55 Ton
Deck Height
15"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
About This Trailer
This 55-ton capacity ROGERS specialized lowboy features a 3 + 1 axle configuration to meet certain state weight law restrictions. The patented "No Foot"® gooseneck is designed to use low hydraulic pressures to lift the load without having to shift its position on the deck. The cambered drop side deck height can be as low as 15" in the normal ride condition.
Full Specifications
Capacity
Capacity55.0-ton
Concentrated Load110,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length25'-0"
Loaded Deck Height15"
Deck Width8'-6"
Deck StyleDrop Side
Running Gear
Axles3+1 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 aluminum outside/steel inside
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
