Rogers Brothers
SP60DS-3XSPR4 60-Ton Detachable Gooseneck
Custom Series Series
Capacity
60 Ton
Deck Height
15"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
About This Trailer

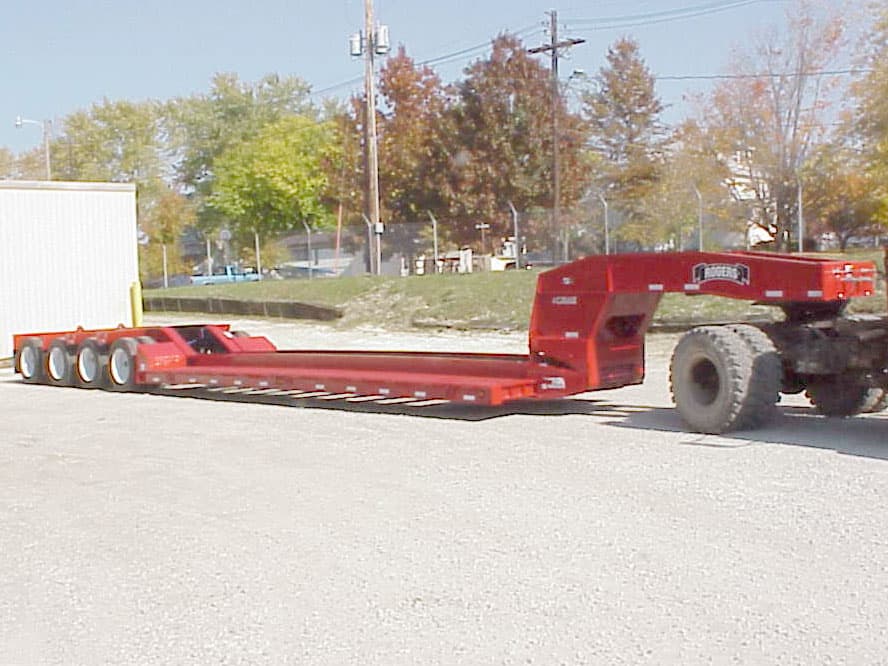

This specialized 60-ton trailer has a detachable gooseneck and features a drop side deck for equipment to ride at a lower overall height. This is a 3+1 axle configuration: the 4th axle can be removed or flipped onto the rear frame.
Full Specifications
Capacity
Capacity60.0-ton
Concentrated Load120,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length25'-0"
Loaded Deck Height15"
Deck Width8'-6"
Deck StyleDrop Side
Running Gear
Axles3+1 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
Suspension75,000 lb. capacity tri-axle heavy-duty spring walking beam
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
