Rogers Brothers
SP60DS-4XAR 60-Ton Detachable Gooseneck
Custom Series Series
Capacity
60 Ton
Deck Height
15"
Axles
4-Axle
Gooseneck
Hydraulic Detachable
Deck Length27 ft
About This Trailer

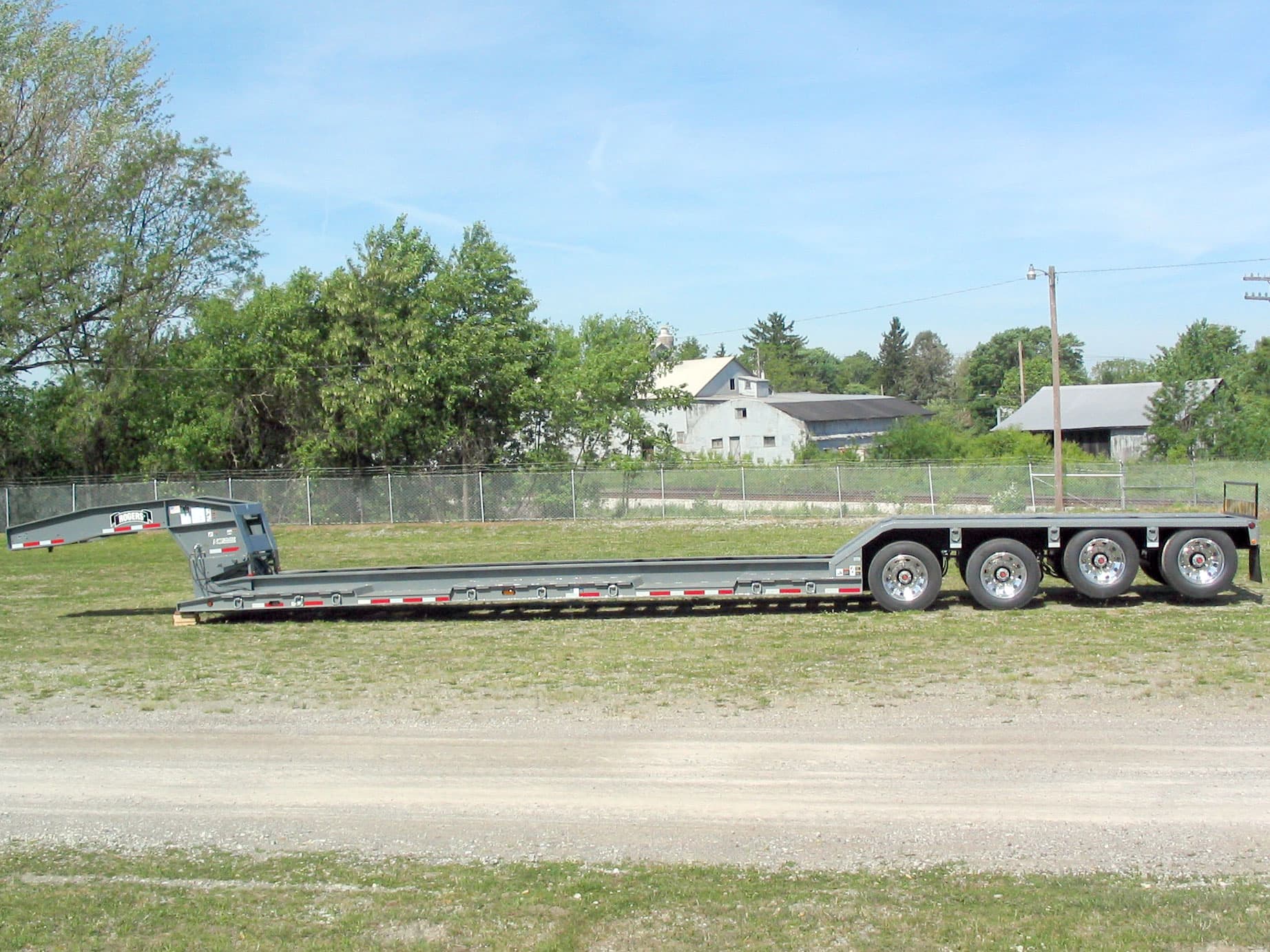

This ROGERS trailer features a cambered drop side deck designed to carry 60 tons in 1/2 its deck length. The deck has a front end taper and a modified ramp ahead of the tires – both make loading simpler. The patented "No Foot"® gooseneck with a heavy lift package can pick up the load anywhere on the deck.
Full Specifications
Capacity
Capacity60.0-ton
Concentrated Load120,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length27'-0"
Loaded Deck Height15"
Deck Width9'-0"
Deck StyleDrop Side
Running Gear
Axles4 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 aluminum outside/steel inside
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
