Rogers Brothers

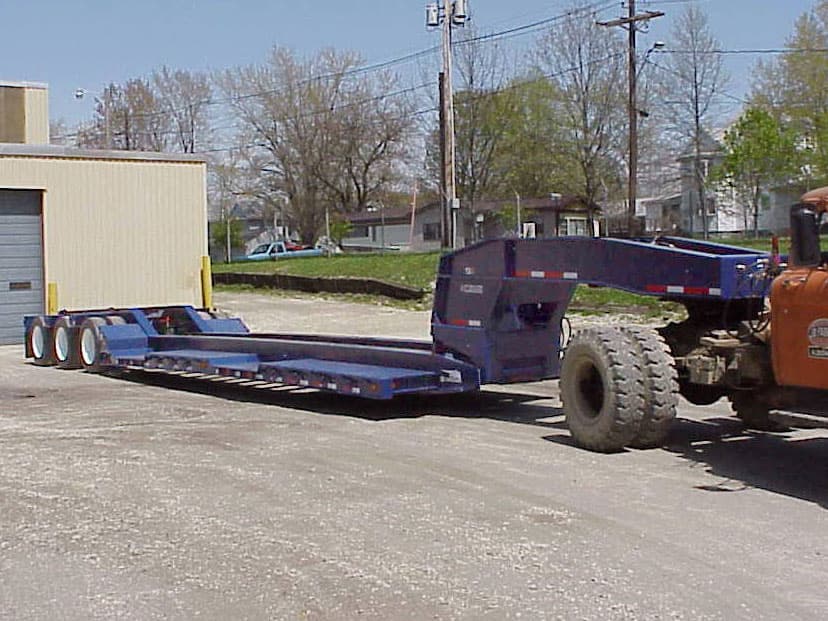

SP60DS 60-Ton Detachable Gooseneck
Custom Series Series
Capacity
60 Ton
Deck Height
15"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
About This Trailer
The SP60DS lowbed has a 60-ton capacity drop side deck built to move tall, heavy machines. It features the patented "No Foot"® self-lifting gooseneck, award winning wheel wells and air ride suspension.
Full Specifications
Capacity
Capacity60.0-ton
Concentrated Load120,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length26'-0"
Loaded Deck Height15"
Deck Width8'-6"
Deck StyleDrop Side
Running Gear
Axles3 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
