Rogers Brothers

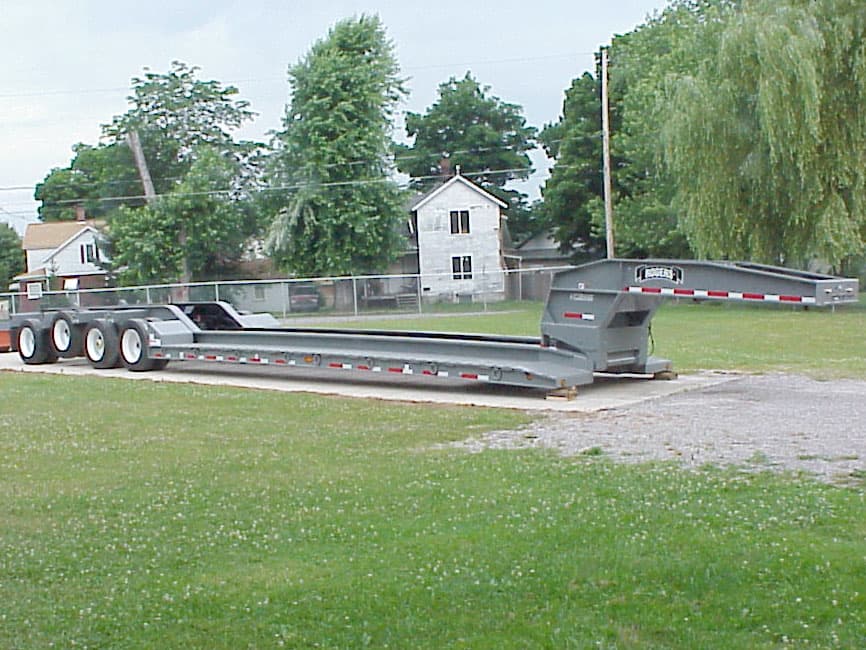

SP60DS-R4 60-Ton Detachable Gooseneck
Custom Series Series
Capacity
60 Ton
Deck Height
15"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
About This Trailer
This specialized lowboy has a cambered drop side deck designed to carry 60 tons in 1/2 of its deck length. The front end's taper and the modified ramp ahead of the tires – both assist loading. The patented "No Foot"® gooseneck with a heavy lift package can pick up its load located anywhere on the deck.
Full Specifications
Capacity
Capacity60.0-ton
Concentrated Load120,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length25'-0"
Loaded Deck Height15"
Deck Width9'-0"
Deck StyleDrop Side
Running Gear
Axles3+1 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
