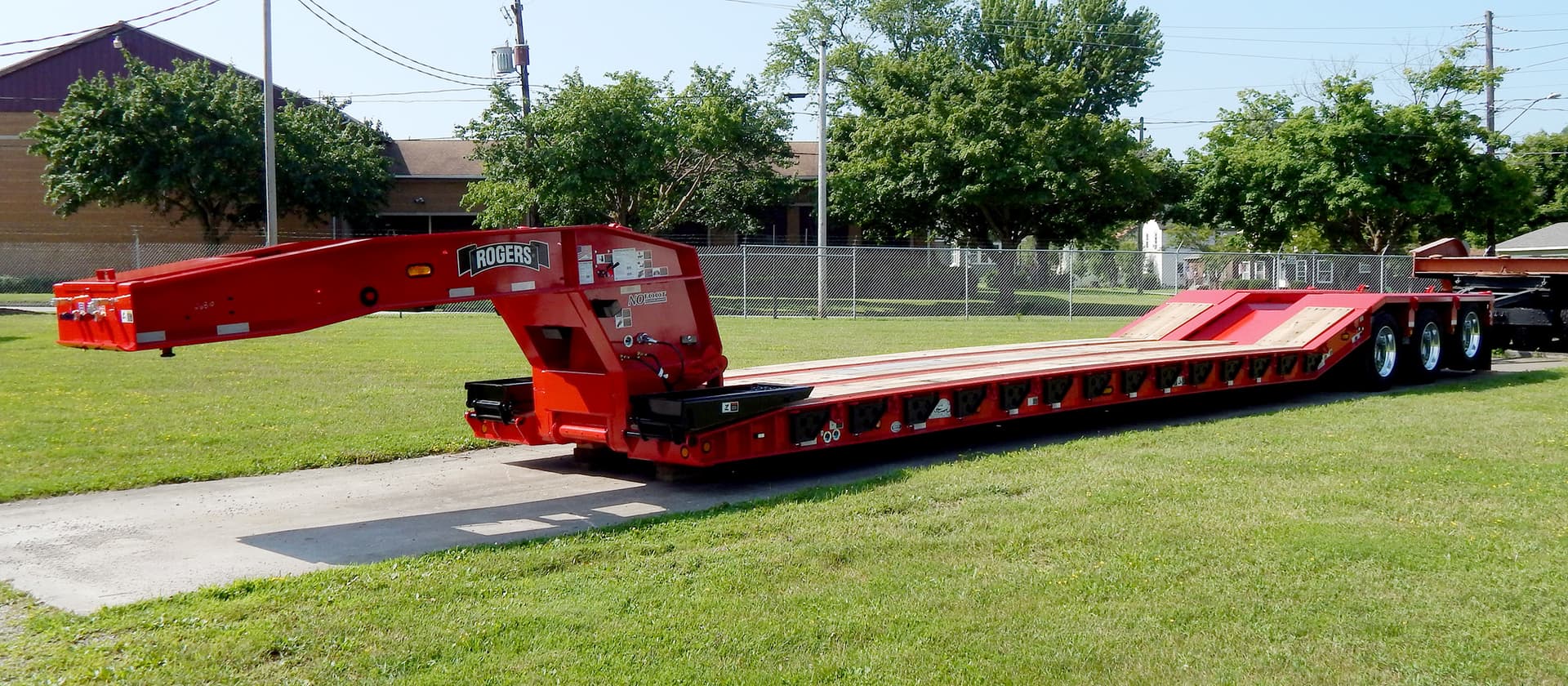

SP60GR-3XAR 60-Ton Detachable Gooseneck (26' Deck)

This custom designed 60-ton "Gentle Riser"® detachable gooseneck lowboy is loaded with features and optional equipment! It has our exclusive tower style "No Foot"® non-ground bearing gooseneck with optional heavy lift package for extreme duty operation. The trailer deck features the easy to load "Croucher"® front slope, cambered platform deck that is 26 ft. long x 8'-6" wide, the ROGERS "Gentle Riser"® that provides a easy to load 17° load angle from the deck to the rear frame load area. Smooth ride air suspension features multiple ride heights, a dump valve, and an air lift 3rd axle. Standard features: Platform deck 26'-0" x 8'-6" with 20" loaded deck height; "Croucher" front approach with tapered beams and flush beam hooks; 14" deep cambered main beams fabricated with high yield 100ksi steel; Dual-arm hydraulic gooseneck support jack with shoe; Axle spacing 54 ½"; Hydraulic power source: Truck PTO; Full 2" air-dried oak decking; Side member flange reinforcing; Twenty-eight (28) severe-duty swinging removable side brackets; Sixteen (16) bent lashing D's · eight (8) each side of deck; "Bucket Pocket" with last three (3) cross members lowered between main beams; "Gentle Riser" 17° oak-covered incline to rear frame; 3/8" tread plate wheel covers, reinforced; 3/8" smooth plate lowered center cover plate up riser to rear channel; Trunnion beams between wheels with lashing D each end; Air suspension · 25,000 lb capacity with mechanical height control; Suspension dump valve; Air lift on 3rd axle; Premium 4S/2M antilock braking system with spring parking brakes; LED LIghts: US DOT 12-volt rubber grommet mounted; Sealed wiring system with 7-wire socket; Epoxy primer: Rogers Red or Black polyurethane enamel topcoat.
