Rogers Brothers

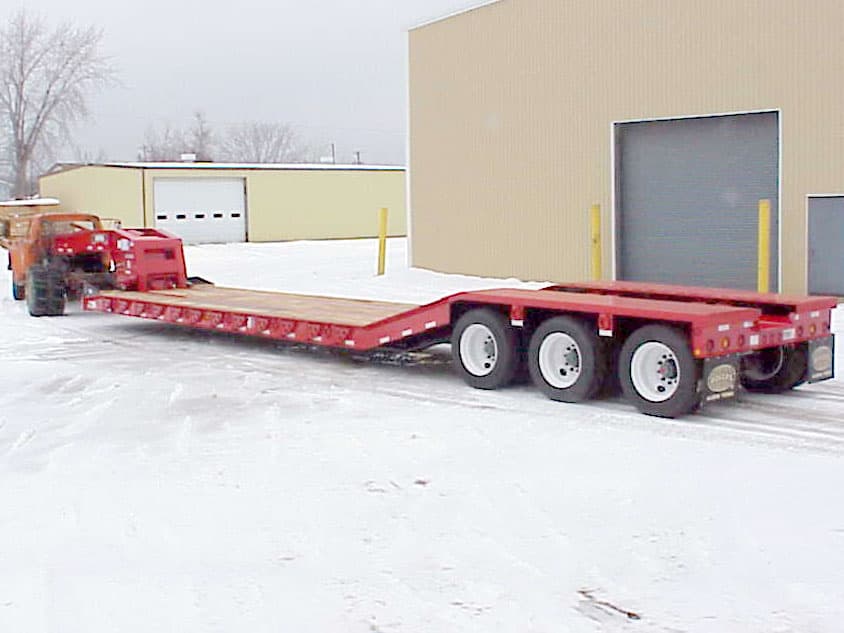

SP60GR-3XSP 60-Ton Detachable Gooseneck
Blacktop Series Trailers Series
Capacity
60 Ton
Deck Height
23"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
About This Trailer
This SP60GR is a 60-ton capacity lowboy that features the often-imitated "Gentle Riser" deck style that can transport multiple machines in one trip. It has the "Croucher"® low front end, the "No Foot"® Tower detachable gooseneck, and air ride suspension.
Full Specifications
Capacity
Capacity60.0-ton
Concentrated Load120,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length25'-0"
Loaded Deck Height23"
Deck Width8'-6"
Deck StyleGentler Riser
Running Gear
Axles3 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension75,000 lb. capacity tri-axle heavy-duty spring walking beam
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
