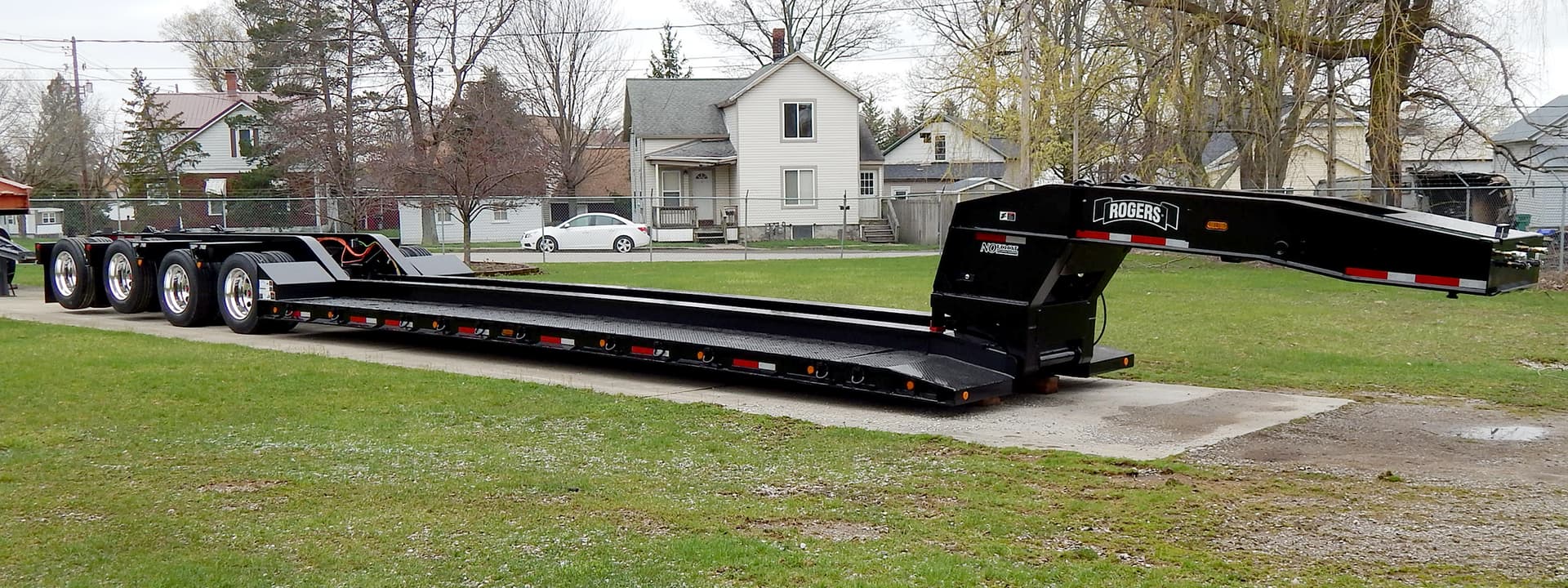

SP65DS 65-Ton Detachable Gooseneck

The ULTIMA Series 65-ton drop side deck trailer was designed and manufactured to excel in the most demanding of applications. The easy to operate NoFoot gooseneck is equipped with our optional heavy-duty lift package, which includes 10" bore hydraulic cylinders and severe-duty lift components throughout. The drop side deck (raised center) is 9'-0" wide and 27'-0" long and provides one of the lowest deck heights available at 15" loaded. Standard features: ROGERS NoFoot non-ground bearing gooseneck; Hydraulic power source: Tractor PTO; Heavy-duty lift package; Dual arm hydraulic gooseneck jack with shoe; 53" light 5th wheel height x 116" swing clearance; Trap door extension blocks to adjust 5th wheel height from 51" to 55"; Four beam cambered drop side deck: 27'-0" long x 9'-0" wide; 1/4" steel tread plate decking; Fixed tapered ramp on front of each drop side; 46" out-to-out of main beams; 26" in-to-in of main beams; 15" loaded deck height at capacity payload; 3/16" steel smooth plate installed between main beams for storage; (14) bent lashing D's, (7) each side of deck; Full-depth "Bucket Pocket"; 30" in-to-in opening in "Bucket Pocket" area; Fixed, arch-type rear frame with sloped ramp ahead of tires; "Boom Trough" with "V" style cross members and rear channel; Trunnions between wheels with a lashing D each end; Rear frame reinforced and prepared for removable/flip 4th axle; (1) pair flag holders; Air ride suspension with mechanical air height control; Air brakes, 16 1/2" x 7" shoes/drums: Premium 4S/2M Antilock braking system (ABS); 25,000 lbs capacity axles; 54 1/2" axle spacing; Air lift axle · 3rd axle (dual air spring style); 275/70R22.5 (H) low profile radial tires on 22.5 x 8.25 hub piloted wheels (aluminum outer/steel inner); Removable/flip 4th axle assembly with air lift; Air dump valve; LED lights: US DOT-approved 12-volt rubber grommet mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat.
