Rogers Brothers

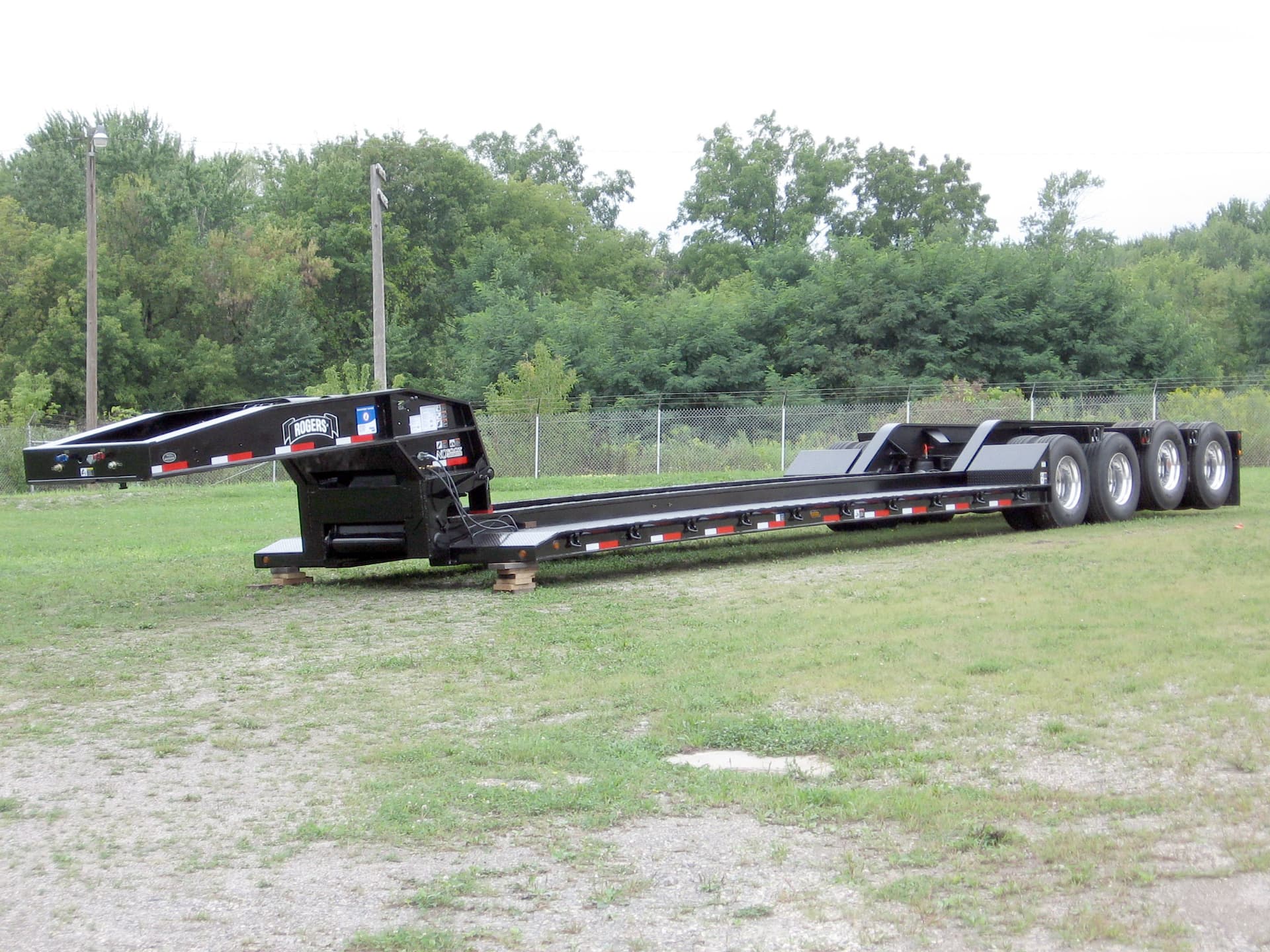

SP75DS-4XAR 75-Ton Detachable Gooseneck
Custom Series Series
Capacity
75 Ton
Deck Height
15"
Axles
4-Axle
Gooseneck
Hydraulic Detachable
Deck Length27 ft
About This Trailer
This 75-ton lowbed has the powerful "No Foot"® detachable gooseneck, drop side deck of 1/4" tread plate, and sloped bridge ramps before the tires. Its load concentration is 150,000 lb. in 14'-0" – half the length of the deck.
Full Specifications
Capacity
Capacity75.0-ton
Concentrated Load150,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length27'-0"
Loaded Deck Height15"
Deck Width10'-6"
Deck StyleDrop Side
Running Gear
Axles4 axles
Axle Type25,000 lbs. capacity with oil-bathed bearings
SuspensionAir Ride 25,000 lb. capacity per axle
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole aluminum disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
