Rogers Brothers
SP75DS 75-Ton Modular
Custom Series Series
Capacity
75 Ton
Axles
3-Axle
Deck Length27 ft
About This Trailer

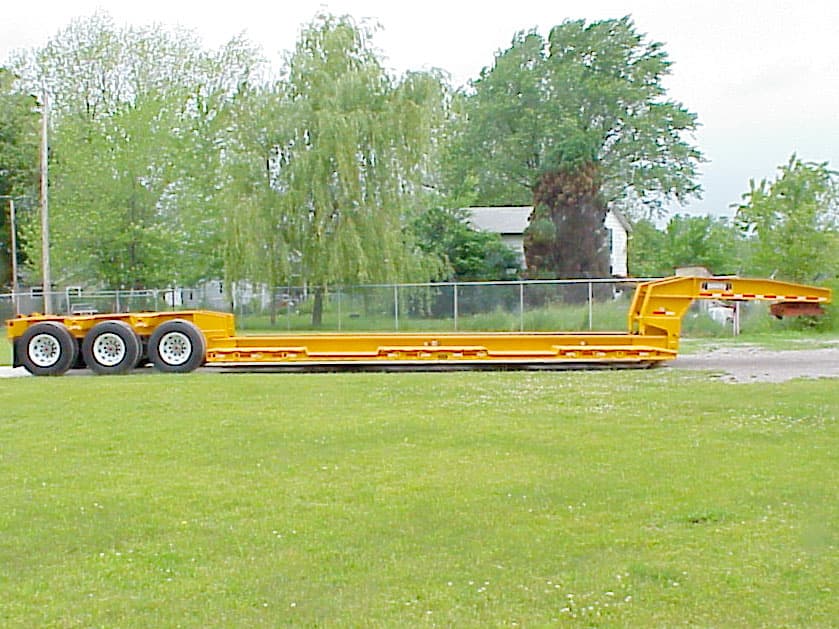

This 75-ton trailer features a drop side deck, award winning ROGERS wheel wells, and a detachable rear frame with set up for a 4th axle.
Full Specifications
Capacity
Capacity75.0-ton
Concentrated Load150,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length27'-0"
Deck Width10'-0"
Deck StyleDrop Side
Running Gear
Axles3 axles
Axle Type30,000 lbs. capacity with oil-bathed bearings
Suspension90,000 lb. capacity per axle heavy-duty spring walking beam
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Rear
Trailer UseModular
