Rogers Brothers
SP80DS 80-Ton Modular
Custom Series Series
Capacity
80 Ton
Axles
3-Axle
Deck Length26 ft
About This Trailer

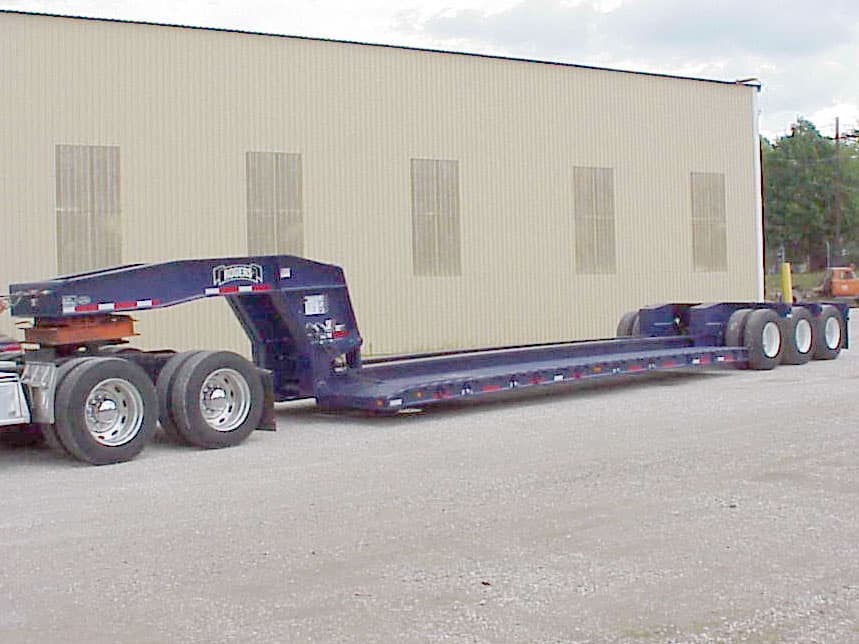

The SP80DS is an 80-ton drop side deck trailer with a detachable rear frame.
Full Specifications
Capacity
Capacity80.0-ton
Concentrated Load160,000-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length26'-0"
Deck Width10'-0"
Deck StyleDrop Side
Running Gear
Axles3 axles
Axle Type30,000 lbs. capacity with oil-bathed bearings
Suspension90,000 lb. capacity tri-axle severe-duty spring walking beam
Tires315/80R22.5(L) low-profile tubeless radial
Wheels22.5 x 9.00 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeDetachable Rear
Trailer UseModular
Rogers Brothers
Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.
Albion, PA
