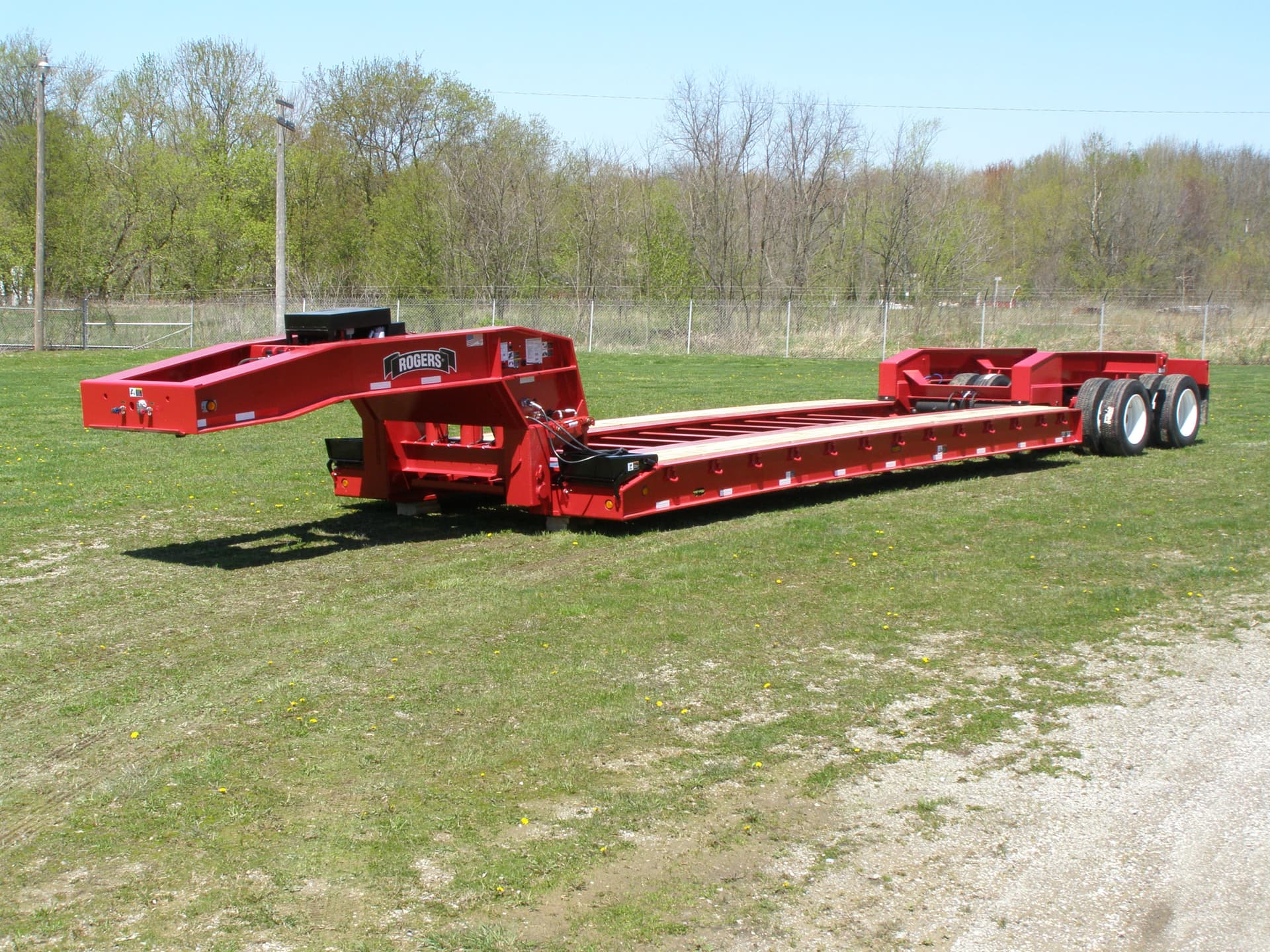

ROGERS SP88PL trailer
Rogers Brothers

SP88PL 88-Ton Detachable Gooseneck

Custom Series Series

Capacity

88 Ton

Deck Height

24"

Axles

4-Axle

Gooseneck

Hydraulic Detachable

Deck Length26 ft

About This Trailer

This detachable gooseneck trailer has a hauling capacity of 88 tons concentrated in 1/2 the deck length. The "Bucket Pocket" in the deck and "Boom Trough" between the rear frame beams gives the bucket and stick of an excavator a place to nestle between the wheels and into the deck to improve overhead clearance. Standard features: Four beam cambered deck design with 16" main beams; 2.75 Air dried oak flooring; 22 Bent lashing D's, 11 on each side of deck; "Bucket Pocket" with last 3 cross members lowered between main beams.

Full Specifications

Capacity
Capacity88.0-ton
Concentrated Load176,370-pounds
Concentrated Load Length13'-0"
Dimensions
Deck Length26'-0"
Loaded Deck Height24"
Deck Width11'-0"
Deck StylePlatform
Running Gear
Axles4 axles
Axle Type33,070 lb capacity with grease-filled bearings
Suspension132,277 lb capacity trunnion style suspensions
Tires275/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes (no ABS)
General
Trailer TypeDetachable Gooseneck
Trailer UseFront Loading: Detachable Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
