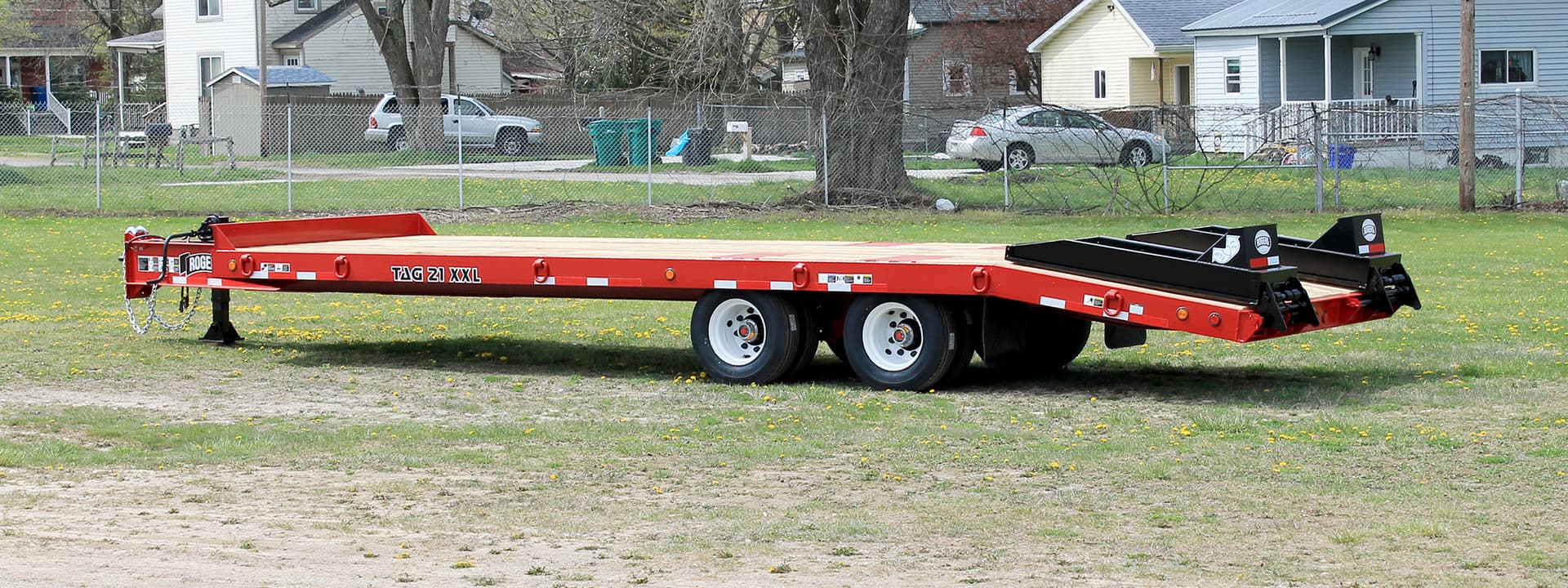

ROGERS TAG21XXL trailer
Rogers Brothers

TAG21XXL 21-Ton Tag-Along

Tag-Along Trailers Series

Capacity

21 Ton

Deck Height

34"

Axles

2-Axle

Deck Length24 ft

About This Trailer

ROGERS® new TAG21XXL 21-ton tag-along trailer now features a longer deck for additional hauling space! The platform deck is 8'-6" wide by 24'-0" long, the beavertail is oak-covered and features an 8° incline angle and 72" long "E-Z Flip" ramps for safe and easy loading. The drawbar is 80" long for better weight distribution and superior handling. This trailer is built tough for many years of reliable service! Standard features: Flat platform deck; Full 1-3/4" air-dried oak decking; Drawbar with 6-position adjustable pintle eye; Two-speed landing gear; Drawbar toolbox with steel lid, behind landing gear; Total (14) standard lashing D's · (7) per side; Tread plate wheel covers; Oak-covered 8º sloped beavertail; Oak-covered "E–Z Flip" loading ramps, dual spring-assisted and laterally adjustable; Steel disc wheels; LED Lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity21.0-ton
Concentrated Load42,000-pounds
Concentrated Load Length15'-0"
Dimensions
Deck Length24'-0"
Loaded Deck Height34"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension44,800 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Tires235/75R17.5(H) low-profile tubeless radial
Wheels17.5 x 6.75 8-hole steel disc
Brakes12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeTag-Along
Trailer UseRear Loading: Tag-Along

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
