ROGERS TAG25XL trailer
Rogers Brothers

TAG25XL 25-Ton Tag-Along

Tag-Along Trailers Series

Capacity

25 Ton

Deck Height

34"

Axles

3-Axle

Deck Length22 ft

About This Trailer

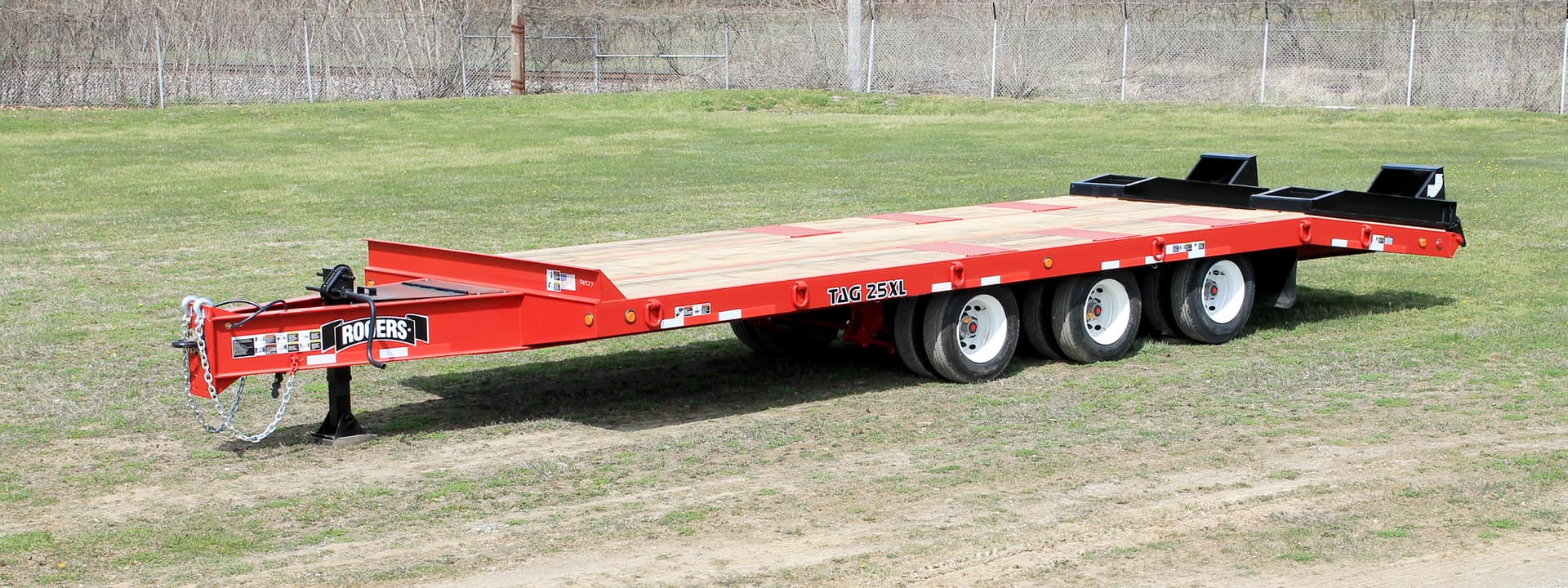

The ROGERS® TAG25XL 25-ton tag-along trailer is built strong to provide years of reliable service. It features a spacious platform deck that is 8'-6" wide by 22'-0" long, an 8° incline beavertail and 72" long "E-Z Flip" ramps for safe and easy loading and an 80" long drawbar for better weight distribution and superior handling. Standard features: Flat platform deck; Full 1-3/4" air-dried oak decking; Drawbar with 4-position adjustable pintle eye; Heavy-duty two-speed landing gear; Drawbar toolbox with steel lid, behind landing gear; Total (12) standard lashing D's; (6) per side; Tread plate wheel covers; Oak-covered 8º sloped beavertail; Oak-covered "E–Z Flip" rear ramps, dual spring-assisted and laterally adjusted; Steel disc wheels; LED lights: US DOT-approved 12-volt with rubber-mounted sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity25.0-ton
Concentrated Load50,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length22'-0"
Loaded Deck Height34"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles3 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension67,200 lb. capacity tri-axle heavy-duty multi-leaf 6-spring
Tires215/75R17.5(H) low-profile tubeless radial
Wheels17.5 x 6.75 8-hole steel disc
Brakes12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeTag-Along
Trailer UseRear Loading: Tag-Along

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
