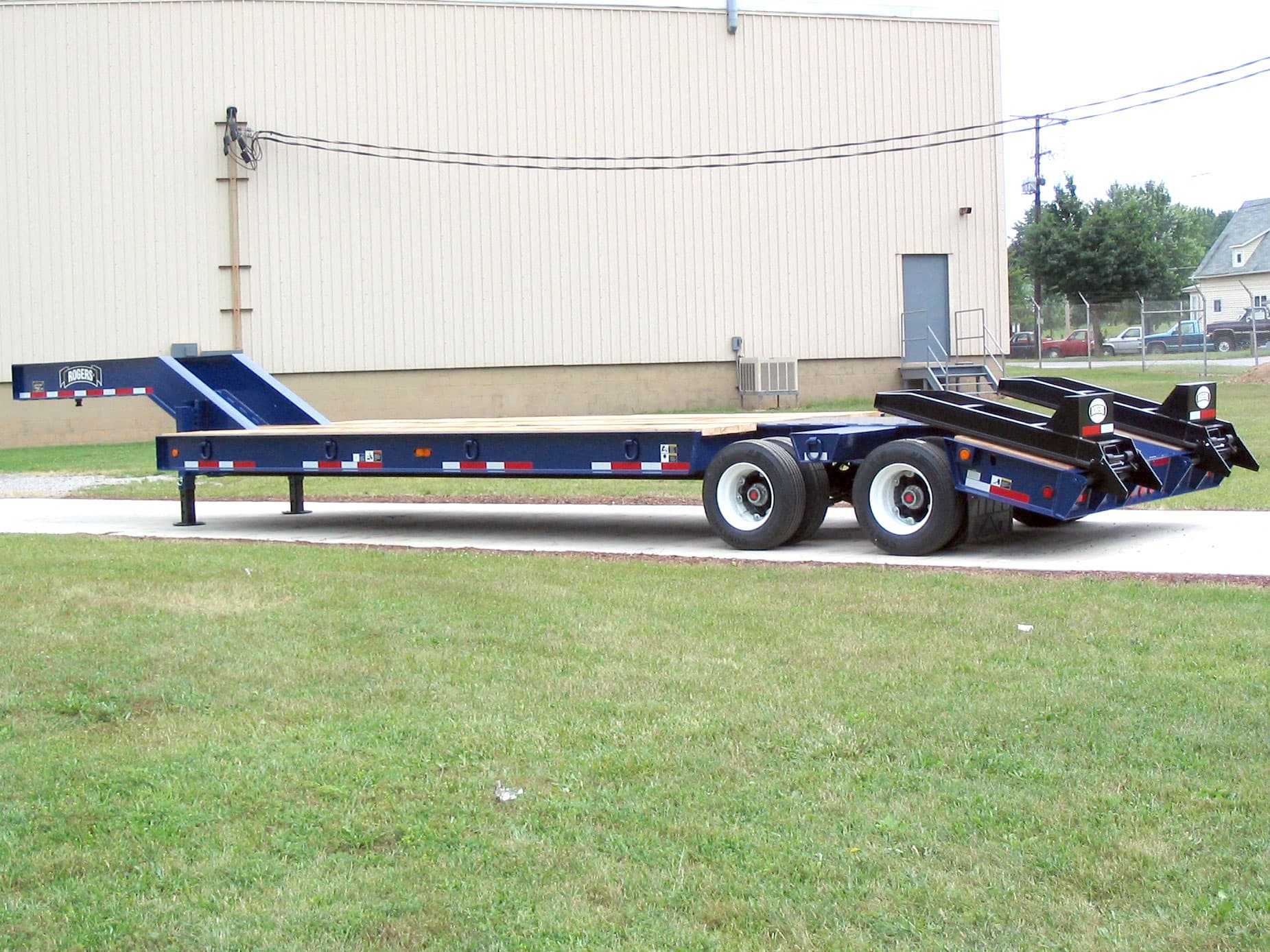

ROGERS TVT25 trailer
Rogers Brothers

TVT25 25-Ton Fixed Gooseneck

Fixed Gooseneck Trailers Series

Capacity

25 Ton

Axles

2-Axle

Gooseneck

Fixed

Deck Length18 ft

About This Trailer

ROGERS Fixed Gooseneck TVT25 has the convenience of rear loading with a spacious level deck and high ground clearance ideal for off-road hauling. Standard features: Low-profile fixed gooseneck; Pin type landing legs; Gooseneck storage area over the king pin; Full 1-3/4" air-dried oak decking; Total (10) bent lashing D's; Trunnions between wheels; Flag holders; Oak-covered 14º sloped beavertail; center 1/4" smooth cover plate; Dual spring-assisted "E–Z Flip" rear ramps, oak-covered, laterally adjustable; LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity25.0-ton
Concentrated Load50,000-pounds
Concentrated Load Length12'-0"
Dimensions
Deck Length18'-0"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension44,800 lb. capacity tandem axle multi-leaf 4-spring
Tires215/75R17.5(H) low-profile tubeless radial
Wheels17.5 x 6.75 8-hole steel disc
Brakes12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeTVT
Trailer UseRear Loading: Fixed Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
