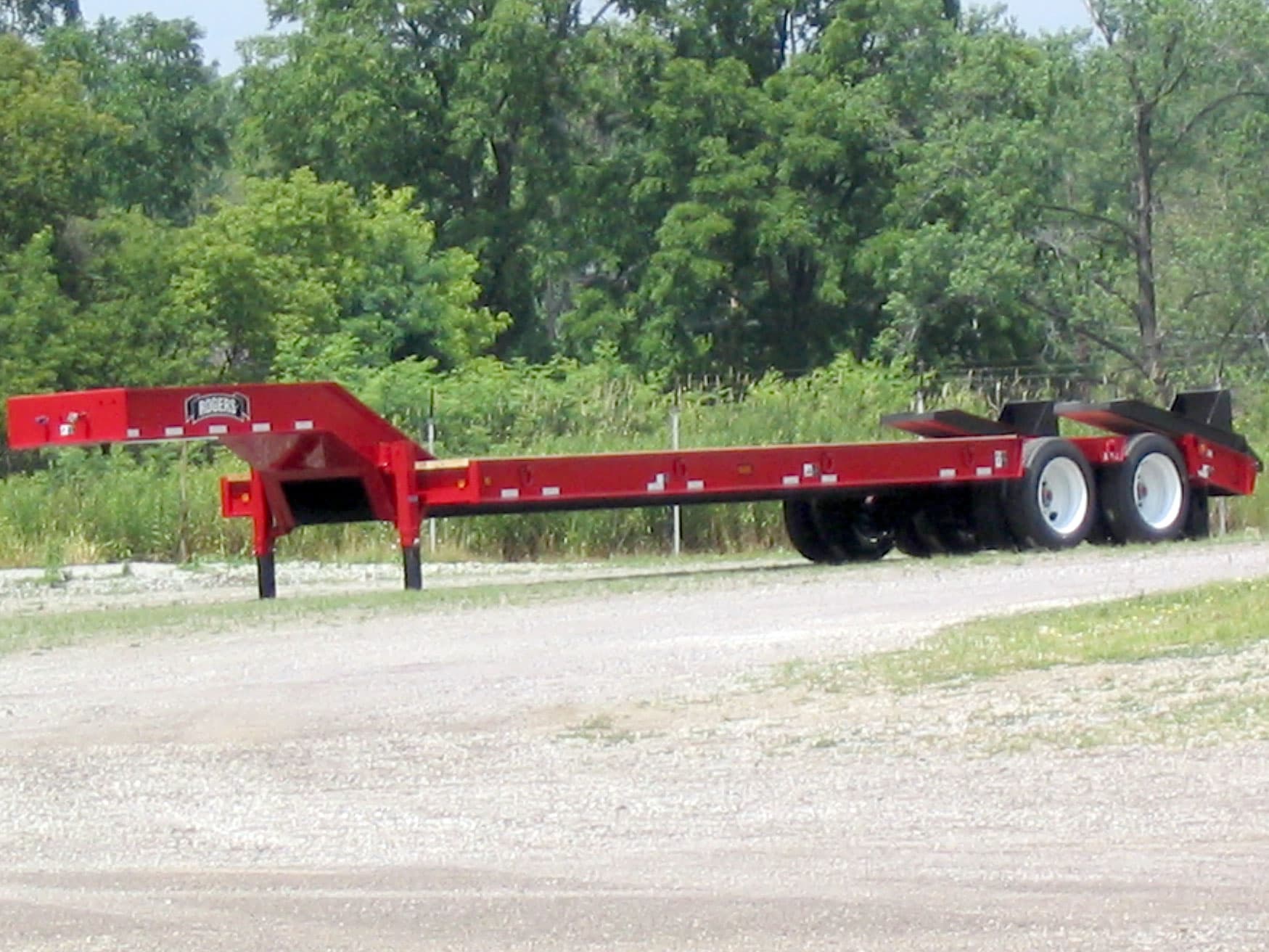

ROGERS TVT35 trailer
Rogers Brothers

TVT35 35-Ton Fixed Gooseneck

Fixed Gooseneck Trailers Series

Capacity

35 Ton

Deck Height

35"

Axles

2-Axle

Gooseneck

Fixed

Deck Length20 ft

About This Trailer

TVT35 is a 35-ton fixed gooseneck which is economical and dependable, easy to load and safe to operate. It’s the choice of companies that need a low deck, but with greater ground clearance than a "double drop" lowboy. Standard features: Low-profile fixed gooseneck; Pin type landing legs; Storage area over the king pin; Full 2" air-dried oak decking; Total (12) bent lashing D’s; Trunnions between wheels; Oak-covered 14º sloped beavertail; Center rear frame smooth 1/4" cover plate; Dual spring-assisted "E–Z Flip" oak-covered rear loading ramps, laterally adjustable; LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).

Full Specifications

Capacity
Capacity35.0-ton
Concentrated Load70,000-pounds
Concentrated Load Length14'-0"
Dimensions
Deck Length20'-0"
Loaded Deck Height35"
Deck Width8'-6"
Deck StylePlatform
Running Gear
Axles2 axles
Axle Type22,500 lbs. capacity with oil-bathed bearings
Suspension50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
Tires255/70R22.5(H) low-profile tubeless radial
Wheels22.5 x 8.25 10-hole steel disc
Brakes16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
Trailer TypeTVT
Trailer UseRear Loading: Fixed Gooseneck

Rogers Brothers

Rogers Brothers Corporation builds ROGERS lowbed heavy-haul trailers in Albion, Pennsylvania, including detachable gooseneck, fixed gooseneck and tag-along models.

Albion, PA
