CP20

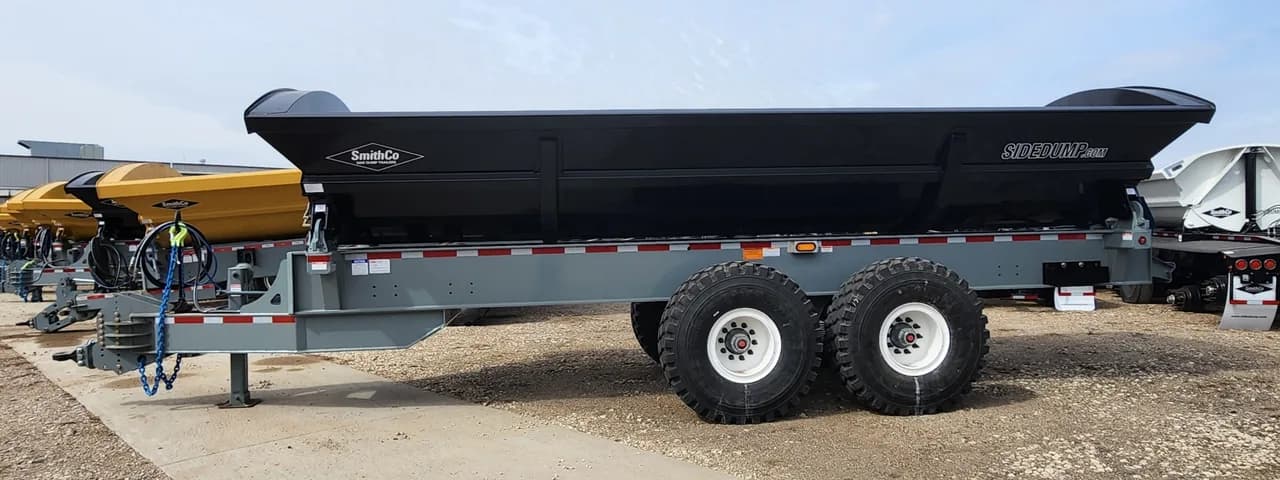

Ag Pup Side Dump Trailer Find dealers closest to your location. SmithCo’s Ag Pup side dump trailer was designed for the agricultural market. It can be easily pulled with an ag tractor and features flotation or construction grade tires. These units are available in a 20-ton capacity with a variety of construction grade or flotation type tires. A 2″ drawbar pin type hitch is standard, but scraper type hitches are also available. Whether you want to top load materials your scraper can’t handle or you want to haul ag products to the field the Ag Series is the perfect choice. Rotating Bull Pull or Ag Hitch, 2" Drawbar Pin Standard, 24" Extensions Available 1/2" Safety Chains w/ Safety Hooks 1/4" Thick AR450 Steel (or equivalent) Round Floor Style Tubs 80/100 KSI, Fabricated Steel I-Beam Hutch H-900 60,000 lb Single Point None, Hydraulic or Air Optional 16:00 R 20 Tires (std) 600/55-22.5 Low Ground Pressure (optional) Polyurethane, any combination of gray, white or black Special colors available upon request Min. Tractor HP Reqs.
