Talbert Manufacturing

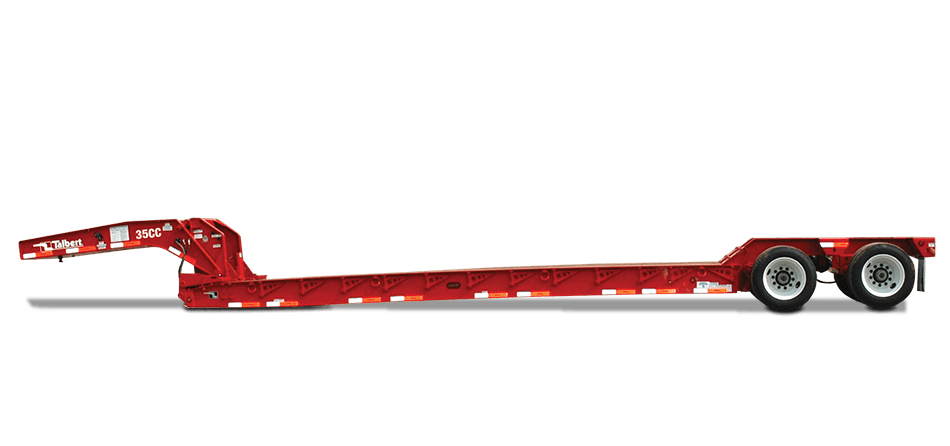

35CC
CC Series Series
Capacity
35 Ton
Axles
14-Axle
Gooseneck
Hydraulic Detachable
Full Specifications
Gooseneck
Non-Ground Bearing Hydraulic Gooseneck DesignTires: 255/70R22.5 (H)
Dimensions
84 in. Swing Radius (Other Lengths Optional)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
24 ft. 0 in. Deck LengthAdjustable Ride Height (Front and Rear)
8 ft. 6 in. Wide DeckBoom Well in Rear Bridge in
22 in. Loaded Deck HeightSpring Parking Brake on One Axle
6 in. Loaded Road ClearanceOptional 3rd Axle
Hydraulics
Hydraulic Support Cylinder (Standard)Anti-Lock Brake System
General
Front Folding / Fixed Ramps (Optional)Bolsters and Half Bolster on Rear Bridge
12 in. Swinging / Removable Outriggers36 in. Mainbeam / Bolster Height
Construction
1-1/2 in. Apitong Flooring12 Volt LED Sealed Light System
High Strength 100,000 psi Minimum Yield Steel70,000 lb. Capacity in 1/2 Deck Length
Capacity
Axles: 25,000 lb. CapacityEstimated Weight: 14,540 lbs.
Running Gear
RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual ControlValspar R-Cure 800 Red or Black Paint
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
