Talbert Manufacturing

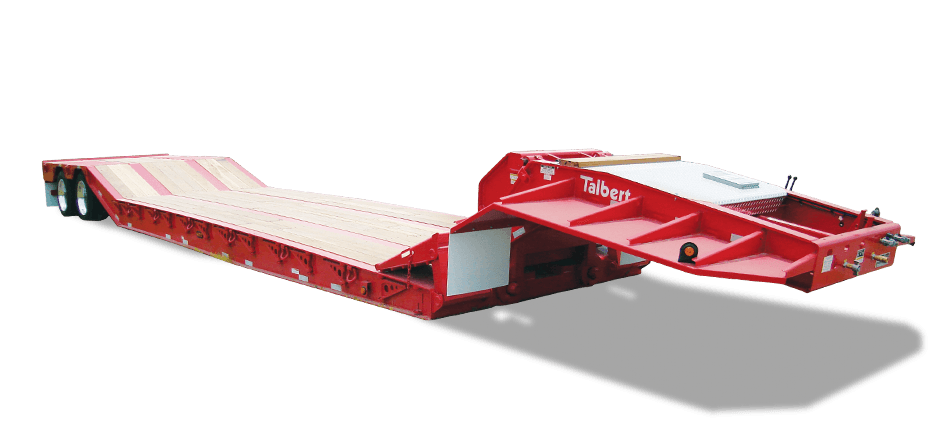

35CC-RP
CC Series Series
Capacity
35 Ton
Gooseneck
Hydraulic Detachable
Overall Length1 ft
Full Specifications
Gooseneck
Low-Profile HRG Gooseneck Design1/4 in. Tread Plate Over Tires
Dimensions
49 in. Loaded Fifth Wheel HeightApitong Between Main Beams in
4 Beam Roller Paver Deck DesignSteel Disc (Hub Piloted) Wheels
47 ft.- 10 in. Overall Length1 ft. 0 in. Horizontal Beavertail
24 ft.- 0 in. (23 ft. 6 in. Clear) Flat Deck3 in. High Roller Stop
22 in. Loaded Deck HeightLights And Wiring: Sealed Harness
8 ft.-6 in. Deck Width4 Lash Rings Each Side Of Deck
6 in. Loaded Road ClearanceSpring Brakes On 1 Axle
Rear Bridge Ramp 5 ft. 0 in. Sloped To DeckEstimated Weight: 18,910 lbs.
General
84 in. Swing RadiusRIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. /-3 in. Manual Control
Hydraulics
Standard Support CylinderRide Height Control: Talbert +3/-3 Valve
Electrical
50 in. Wood Filled Front Loading Ramp70,000 lb. Capacity In 1/2 Deck Length
Construction
1-1/2 in. Apitong FlooringValspar R-Cure 800 Red Or Black Paint
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
