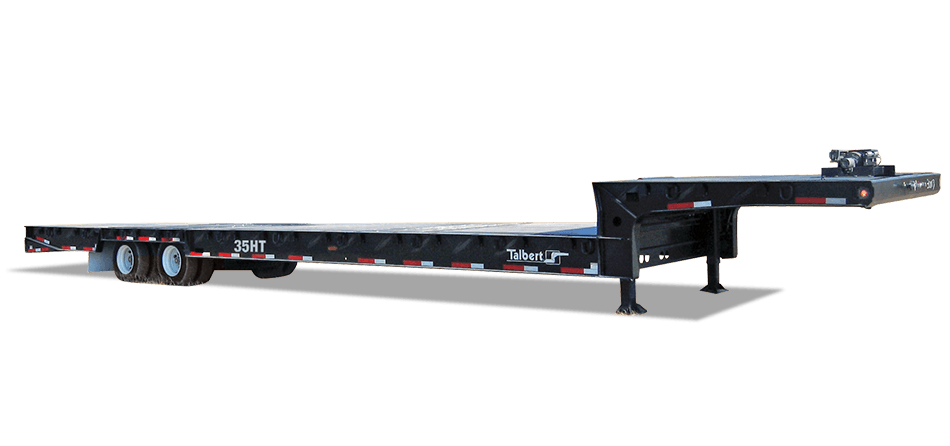

Talbert Manufacturing
35HT
HT Series Series
Capacity
35 Ton
Gooseneck
Fixed
Full Specifications
Capacity
70,000 lb. Capacity Evenly Distributed 50,000 lbs. In 16 ft. 0 in. Load Concentration At 60 mph3/8 in. Steel Deck Plate Covered Wheel Wells
Dimensions
9 ft. 2 in. Gooseneck Length25,000 lb. Axles With Oil Seals
49 in. 5th Wheel Height1-1/2 in. Apitong Decking (Raised) On Deck And Tail
Vertical Deck To Gooseneck Transition With Steel PlateHub Piloted Type Disc Wheels / Outboard Mount Hubs
102 in. Deck Width12-1/4 in. x 7-1/2 in. Brakes With ABS Braking System
36-1/4 in. Loaded Deck HeightAuto Slack Adjusters
18-1/2 in. Loaded Ground ClearanceDot Rubber Mounted Sealed Beam Lights With Modular Harness
D-Rings On 4 ft. Centers On Deck And TailEstimated Weight: 18,380 lbs.
Hydraulics
Hydraulic System Is Wet Line Operation StandardRear Folding Tail Is 12 ft. Total (8 ft. Top Of Platform And 4 ft. Flip Under) (15 degree Loading Angle)
General
2 Speed Landing LegsTail Has Lifting Capability Of 20,000 lbs. 4 ft. Back From Hinge Pin
Wireless Remote Winch OperationTires: (8) 235/75R 17.5 (H)
Stake Pockets / Chain Slots On 24 in. CentersRed And White Conspicuity Striping
Gooseneck
Perimeter Frame Gooseneck DesignTail Is Equipped With Automatic Locking Device And Self Cleaning Bushings
Dual Toolboxes On Front Of GooseneckAir Ride Suspension With Dump Valve
Hydraulic Winch Located Top, Center, Front Of Gooseneck49 in. Axle Spacing
4 D-Rings On GooseneckTalbert Red Or Black Paint
Construction
Heavy Duty I-Beam Cross Members On 12 in. CentersMud Flaps
