Talbert Manufacturing

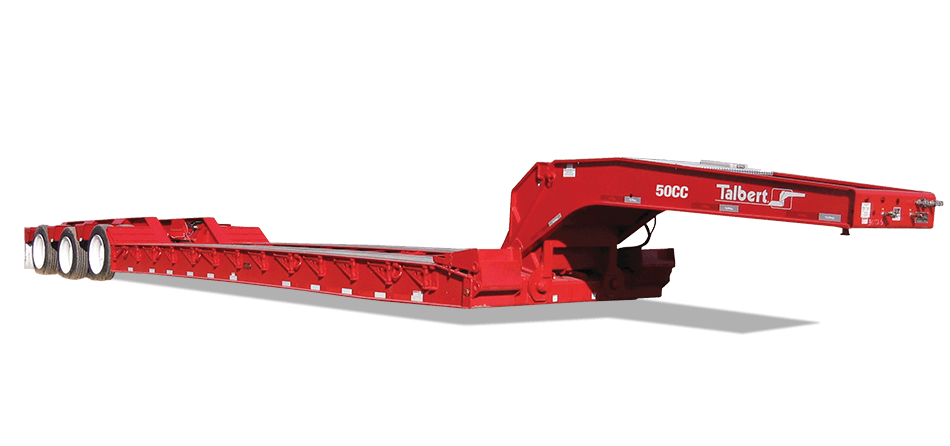

50CC
CC Series Series
Capacity
50 Ton
Deck Height
4"
Axles
800-Axle
Gooseneck
Hydraulic Detachable
Deck Length40 ft
Full Specifications
Gooseneck
Non-Ground Bearing Hydraulic Gooseneck DesignRIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
Dimensions
96 in. Swing Radius (Other Lengths Optional)Tires: 255/70R22.5 (H)
25 ft. 0 in. Deck Length40 in. Mainbeam / Bolster Heigh
8 ft. 6 in. Wide DeckSpring Parking Brake on Axle Two
22 in. Loaded Deck HeightOptional 4th Axle
6 in. Loaded Road Clearance12 Volt LED Sealed Light System
Hydraulics
Hydraulic Support Cylinder (Standard)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums (ABS Optional)
General
Front Folding / Fixed Ramps (Optional)Bolsters and Half Bolster on Rear Bridge
12 in. Swinging / Removable OutriggersBoom Well in Rear Bridge
Construction
1-1/2 in. Apitong Flooring102,000 lb. Capacity in 1/2 Deck Length
High Strength 100,000 psi Minimum Yield SteelEstimated Weight: 18,180 lbs.
Capacity
Axles: 25,000 lb. CapacityValspar R-Cure 800 Red or Black Paint
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
