Talbert Manufacturing

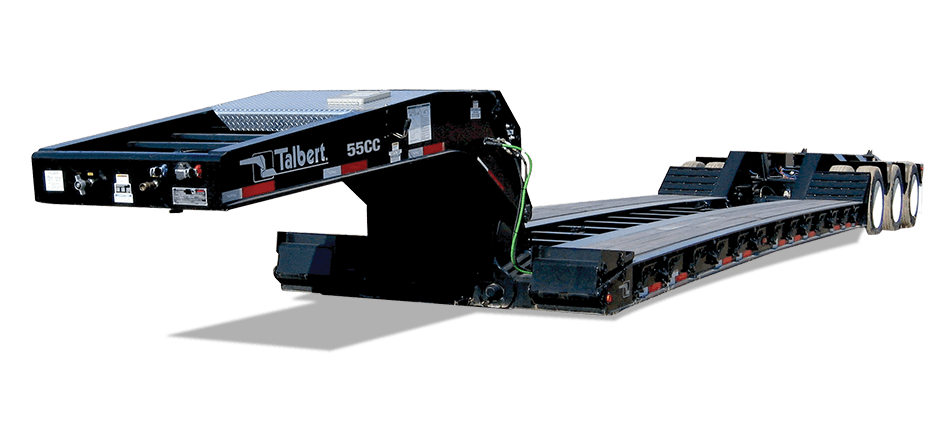

55CC
CC Series Series
Capacity
55 Ton
Axles
800-Axle
Gooseneck
Hydraulic Detachable
Full Specifications
Gooseneck
Non-Ground Bearing Hydraulic Gooseneck DesignRIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
Dimensions
108 in. Swing Radius (Other Lengths Optional)Manual Exhaust Valve
26 ft. 0 in. Deck LengthBolsters and Half Bolster on Rear Bridge
8 ft. 6 in. Wide DeckBoom Well in Rear Bridge in
18 in. Loaded Deck Height / 6 in. Loaded Road ClearanceSpring Parking Brake on Axle Two
1/4 in. Plate Bucket Well in Last 6 ft. of Deck4th Axle Capable
Hydraulics
Hydraulic Support Cylinder (Standard)Tires: 275/70R22.5 (H)
General
Front Folding / Fixed Ramps (Optional)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
12 in. Swinging / Removable Outriggers41 in. Mainbeam / 37 in. Bolster Height
Two Sections Chain Storage110,000 lb. Capacity in 1/2 Deck Length
Construction
2 in. Apitong Flooring Outboard Mainbeams12 Volt L.E.D. Sealed Light System
High Strength 100,000 psi Minimum Yield SteelEstimated Weight: 22,450 lbs.
Capacity
Axles: 25,000 lb. CapacityValspar R-Cure 800 Red or Black Paint
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
