Talbert Manufacturing

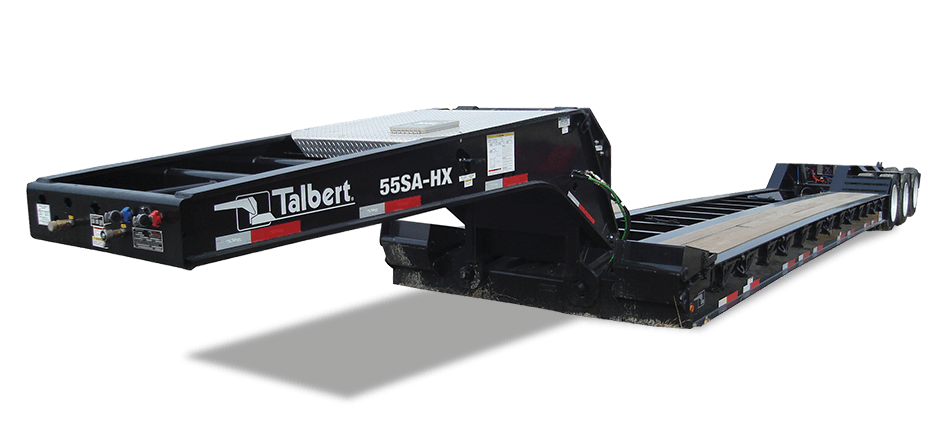

55SA-HX
SA Series Series
Capacity
55 Ton
Axles
800-Axle
Gooseneck
Hydraulic Detachable
Full Specifications
Gooseneck
Non-Ground Bearing Gooseneck DesignRIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
General
114/90 in. Dual Swing RadiusManual Exhaust Valve (Optional)
Front Folding / Fixed Ramps (Optional)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
12 in. Swinging / Removable Outriggers40 in. Mainbeam / 36 in. Bolster Height
Auxiliary Crossmembers (HX Standard)4th Axle Capable with or without Axle Extension
Upper Flange Reinforcement (Optional)12 Volt LED Sealed Light System
Hydraulics
Hydraulic Support Cylinder (Standard)Tires: 255/70R22.5 (H)
Dimensions
26 ft. 0 in. Deck LengthBolsters and Half Bolster on Rear Bridge
8 ft. 6 in. Wide DeckBoom Well in Rear Bridge in
24 in. Loaded Deck Height / 8 in. Loaded Road ClearanceSpring Parking Brake on Axle Two
1/4 in. Plate Bucket Well in Last 6 ft. of DeckStrobes and Battery Backup (Optional)
Construction
High Strength 100,000 psi Minimum Yield Steel110,000 lb. Capacity in 1/2 Deck Length 110,000 lb. in 16ft. when 3+1
Capacity
Axles: 25,000 lb. CapacityEstimated Weight: 21,660 lbs.
Running Gear
Air Lift 3rd Axle (Optional)Valspar R-Cure 800 Red or Black Paint
