Talbert Manufacturing

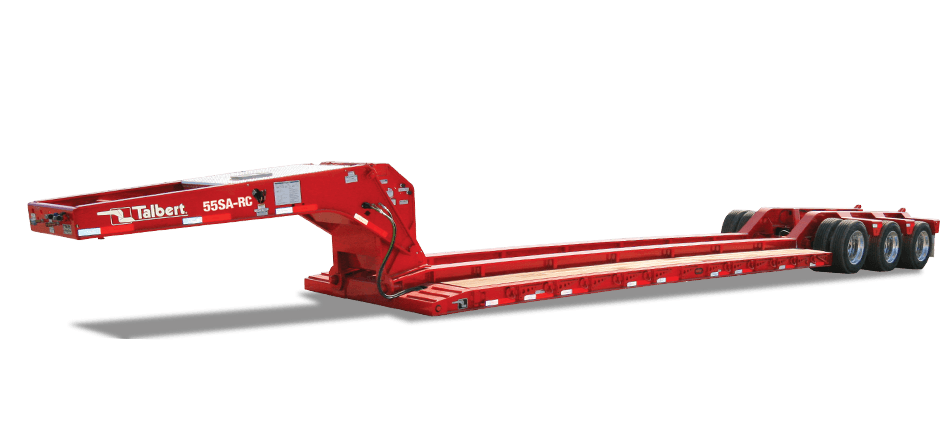

55SA-RC
SA Series Series
Capacity
55 Ton
Deck Height
12"
Axles
800-Axle
Gooseneck
Hydraulic Detachable
Deck Length41 ft
Full Specifications
Gooseneck
Non-Ground Bearing Gooseneck DesignRIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control
Dimensions
108 in. Swing Radius (Other Lengths Optional)Tires: 275/70R22.5 (H)
26 ft. 0 in. Deck Length (Other Lengths Optional)41 in. Mainbeam / 37 in. Bolster Height
8 ft. 6 in. Wide Deck (48 in. Out To Mainbeam)Spring Parking Brake on Axle Two
22 in. Mainbeams, 15-1/2 in. Loaded Side Height12 Volt LED Sealed Light System
6 in. Loaded Road Clearance4th Axle and 3+1 Spread Capable
Hydraulics
Hydraulic Support Cylinder (Standard)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
General
Front Folding / Fixed Ramps (Optional)Bolsters and Half Bolster on Rear Bridge
12 in. Swinging Outriggers (Not Removable)Extra Deep Boom Well in Rear Bridge
Construction
2 in. Apitong Flooring110,000 lb. Capacity in 1/2 Deck Length
High Strength 100,000 psi Minimum Yield SteelEstimated Weight: 21,960 lbs.
Capacity
Axles: 25,000 lb. CapacityValspar R-Cure 800 Red or Black Paint
