Talbert Manufacturing

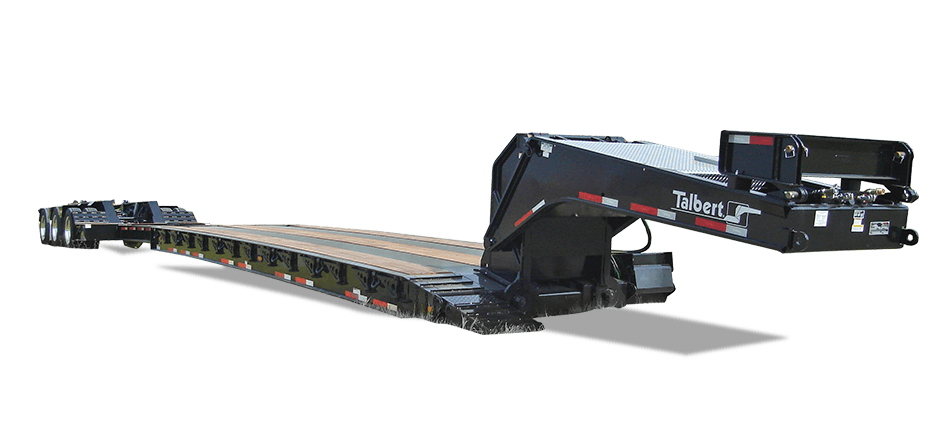

55SA TELE
SA Series Series
Capacity
55 Ton
Deck Height
800"
Gooseneck
Hydraulic Detachable
Deck Length1 ft
Full Specifications
Capacity
Capacity: 110,000 lb. In a 14 ft. Two-Point Rigid Load Base (Deck Fully Retracted)6 in. Loaded Road Clearance
Capacity: 110,000 lb. In a Two-Point Rigid Load Base 4 ft. Less Than Extended Deck Length1-1/2 in. Apitong Flooring tons
Gooseneck
Hydraulic Removable GooseneckAxle Capacity: 25,000 lb.
90 in. Swing Radius (114 in. with Gooseneck Extension)RIDEWELL Air Ride Suspension. 3rd and 4th Axles Can be Flipped or Removed
Hydraulics
Hydraulically Operated Support ArmTalbert +3 in. / -3 in. Raising & Lowering
Wet-Line Operation (Gas Power Pack Optional)Manual Control
Dimensions
3 ft. 0 in. Rear Deck PlatformTires: 275/70R22.5 (H)
8 ft. 6 in. Wide Deck and Rear Bridge3rd Axle Can Be Used in 3+1 Spread in
Four (4) Beam Telescopic Deck DesignCambered Telescopic Beams
20 in. Loaded Deck HeightValspar R-Cure 800 Top Coat Red or Black Paint
General
12 in. Swinging/Removable OutriggersConnections Rear of Axle 3
Front Folding Ramps (Optional)Front Bridge Ramps
Construction
T1/80K ConstructionSpring Parking Brake on One Axle
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
