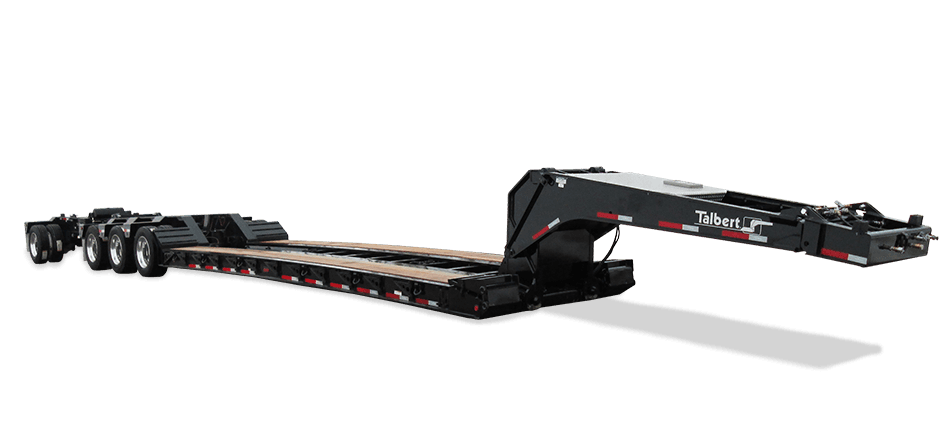

Talbert Manufacturing
60CC/55SA-LD
CC Series Series
Capacity
60 Ton
Deck Height
4"
Axles
110-Axle
Gooseneck
Hydraulic Detachable
Deck Length41 ft
Full Specifications
Gooseneck
Non-Ground Bearing Gooseneck DesignManual Exhaust Valve
108 in. Swing Radius with Connections for 24 in. Gooseneck ExtensionTires: 275/70R22.5 (H)
Hydraulics
Hydraulic Support Cylinder (Standard)Wheels: Steel Disc, Hub Piloted with Outboard Brake Drums
General
Front Folding / Fixed Ramps (Optional)Bolsters and Half Bolster on Rear Bridge
12 in. Swinging / Removable OutriggersBoom Well in Rear Bridge
Two Sections Chain Storage110, 000 lb. Capacity in 10’-0” two point rigid load base with a 108” swing radius and 4 axles close coupled
Dimensions
26 ft. 0 in. Deck Length41 in. Mainbeam / 37 in. Bolster Height
8 ft. 6 in. Wide DeckSpring Parking Brake on Axle Two
18 in. Loaded Deck Height / 6 in. Loaded Road Clearance4th Axle and 3+1 E1Nitro Spread Capable
1/4 in. Plate Bucket Well, Last 6 ft. of Deck12 Volt LED Sealed Light System
Construction
High Strength 100,000 psi Minimum Yield SteelEstimated Weight: 23,850 lbs.
2 in. Apitong FlooringValspar R-Cure 800 Red or Black Paint
Capacity
Axles: 25,000 lb. Capacity110,000 lb. Capacity in 1/2 Deck Length two point rigid load base with a 132” swing radius and 3+1 E1 nitro axles extension lbs
Running Gear
RIDEWELL Suspension: Air Ride with Automatic and Talbert +3 in. / -3 in. Manual Control120,000 lb. Capacity in 1/2 Deck Length two point rigid load base with a 108” swing radius and 4 axles close coupled
