Talbert Manufacturing

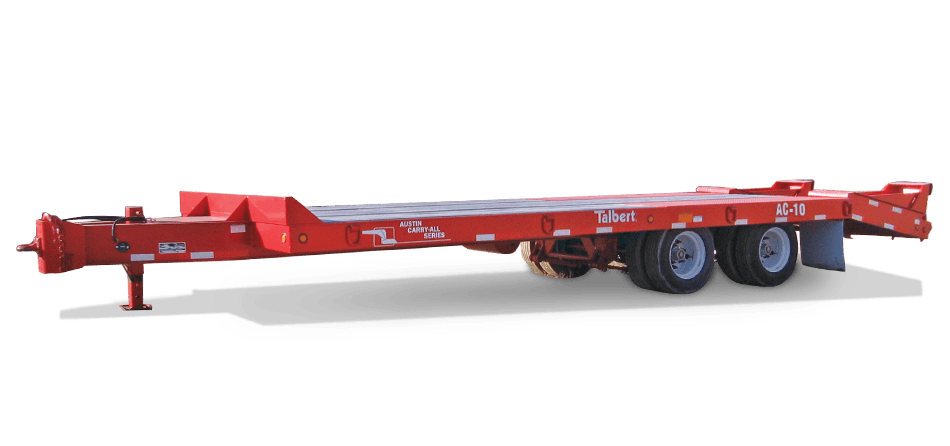

AC-10
Deck Height
800"
About This Trailer
Day-to-day hauling demands equipment that’s tough and dependable. The Tag-A-Long and ART trailer series are built to streamline loading and keep your operation moving efficiently.
Full Specifications
Capacity
20,000 lb. Capacity1-1/2 in. Apitong on Main Deck and Between Mainbeams of Beavertail tons
General
Adjustable 3 in. Pintle Eye1/4 in. Floor Plate over Wheel Wells
Safety Chains with HooksTires: 215/75R17.5 (H)
15,000 lb. Single Speed Drop LegWheels: Steel Disc Hub Piloted
Lockable Tool BoxAir Brakes with 2S1M ABS
8 in. HeadboardHutch Spring Suspension
Self-Cleaning Spring-Assisted RampsEstimated Weight: 8,500 lbs.
Dimensions
24 ft. 0 in. Deck (19 ft. 0 in. Flat; 5 ft. 0 in. Beavertail)3 Lash Rings Each Side
32-1/4 in. Loaded Deck HeightValspar R-Cure 800 Red or Black Paint
