Talbert Manufacturing

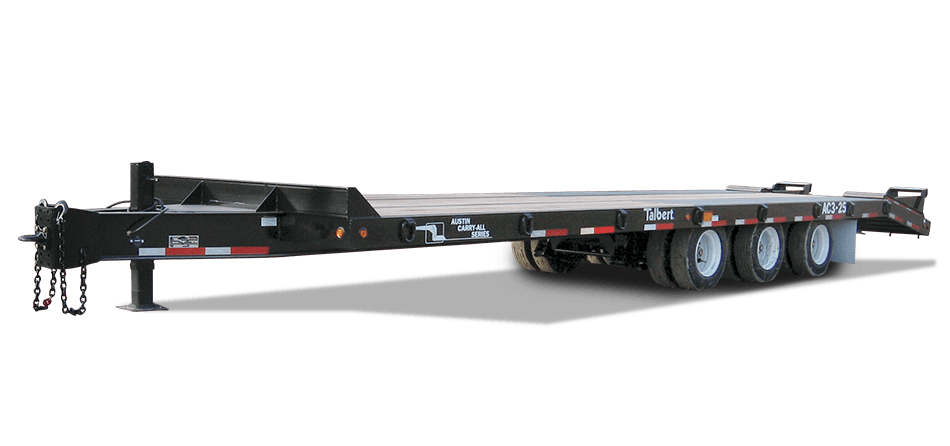

AC3-25
Deck Height
800"
Full Specifications
Capacity
50,000 lb. Capacity1-1/2 in. Apitong on Main Deck and Between Mainbeams of Beavertail tons
General
Adjustable 3 in. Pintle Eye1/4 in. Floor Plate over Wheel Wells
Safety Chains with HooksTires: 215/75R17.5 (H)
25,000 lb. (2) Two-Speed Landing LegWheels: Steel Disc Hub Piloted
Lockable Tool BoxAir Brakes with 2S1M ABS
8 in. HeadboardHutch Spring Suspension
Self-Cleaning Spring-Assisted RampsEstimated Weight: 9,200 lbs.
Dimensions
29 ft. 0 in. Deck (24 ft. 0 in. Flat, 5 ft. 0 in. Beavertail)5 Lash Rings Each Side
32-3/4 in. Loaded Deck HeightValspar R-Cure 800 Red or Black Paint
Talbert Manufacturing
Inventor of the hydraulic detachable gooseneck trailer. Manufacturer of heavy-capacity lowboy and specialized trailers.
Rensselaer, IndianaFounded 1938
