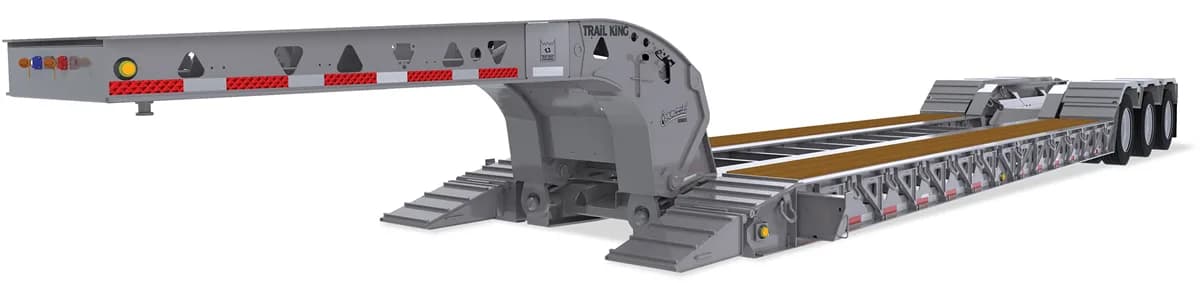

Hydraulic Detachable Gooseneck | Lowboy Trailer

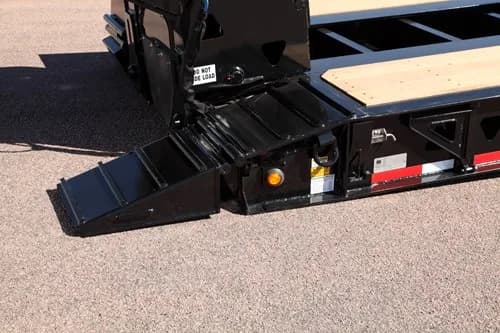

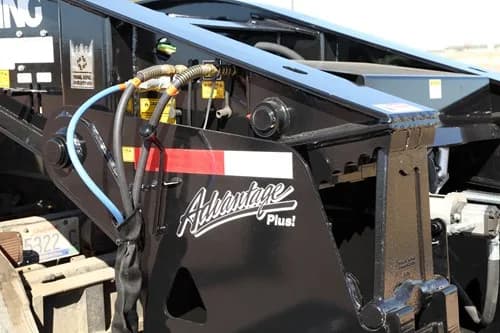

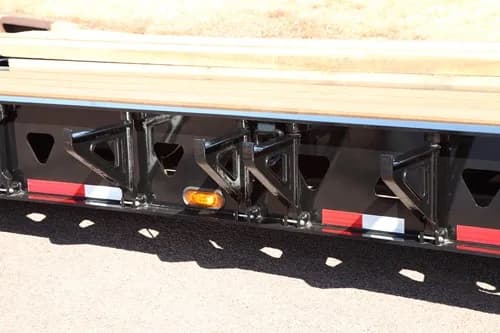

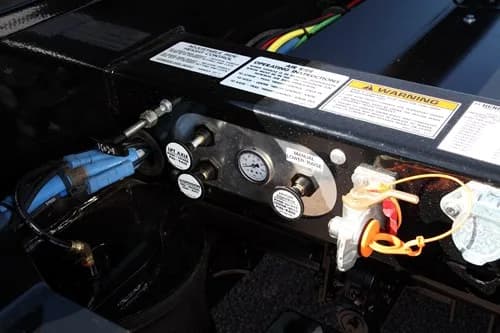

Adjustable Arched GooseneckThe new arched design provides ample truck frame clearance, even at the lowest king pin height setting. The five-position gooseneck door adjustment allows for a full 6 inch range of king pin height settings. The notched setting control bar for the control handle takes the guesswork out of setting the gooseneck doors in the desired position. Outrigger ConstructionI-beam style outriggers are mounted on the top and bottom flange and span the entire width of the side beam for optimum strength and support. Heavy-duty pullout front outriggers provide extra strength at the pivot point where the weight is concentrated during loading. Close-set outriggers at mid-deck prevent planks from tipping up when the load rolls over them. Adjustable Ride Height ControlAdjustable ride height control is standard on TK102HDG and TK110HDG models, with the controls conveniently located near the rear tail channel. Double-Hinged Ramp and Support LedgeThe 31 inch front loading ramps are doublehinged and reinforced with a support ledge for added strength. Because both hinges rest on the ledge, even heavy track-type equipment can be loaded without risk of “peeling off” the loading ramp. For more than two decades, our Hydraulic Detachable Gooseneck Trailer has been North America’s bestselling detachable lowboy trailer for construction professionals—and for good reason. It’s engineered to make unhooking, loading and unloading, and hooking up again a simple one-person operation. Its dependable load-hauling strength, durability, and versatility can stand up to any challenge, including “tough to scale” loads. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King Hydraulic Detachable Gooseneck Protect Your Investment with Our Complete Line of Services Trail King Paint Options We don’t have any current videos of this product on our YouTube channel (YET), but go subscribe so you don’t miss any new uploads! Published Date: June 17, 2026
