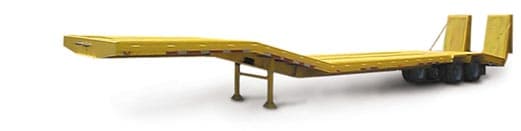

RN-35 • 35 Ton Paver Special

RN-35 Ton Paver special Features – 70,000# load capacity, 8’ 6″ wide, 9’ long loadable gooseneck, 30 degree slope bed to neck, 33′ lower deck, 72″ beaver tail, 53’ overall length. Lower deck height 34″, 2″ oak decking, neck, lower deck & beaver tail, steel plate above tire area & slope bed to neck, 8 “D” rings, 4 per side. Hutch H-9700 spring suspension, 2 each 25,000# axles, 16.5″ x 7″ air brakes w/ABS system, 255/70 R 22.5 tires, 10 stud unimount hubs, pilot mount wheels, 2 speed landing gear. Modular wire harness, rubber mounted sealed lights, conspicuity marking tape, as per DOT requirements. Available options: · Other capacities and widths · Lockable storage · Axle capacities & · Lengths – neck, deck & beaver tail · 12″ outriggers configurations · Additional “D” rings · Tire sizes and wheel/rim types · Load heights · Electric over hydraulic ramps · Suspensions/air ride *Note: ABS brakes required on all 35, 40 and 50-ton domestic sales.
