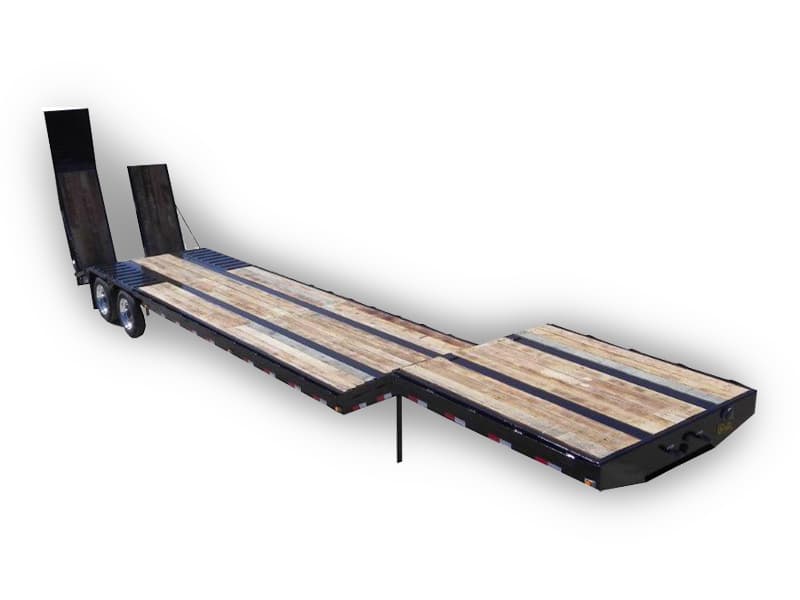

RN-40 • 40 Ton Full Width Neck

RN-40 Full Width Standard Features – 80,000# load capacity, 8’ 6″ wide, 9’ long loadable gooseneck, 30 degree slope bed to neck, 28′, 6″, lower deck, 36″ beaver tail, 44’-3″ overall length. Lower deck height 40″, 2″ oak decking, neck, lower deck & beaver tail, steel plate above tire area & slope bed to neck, 8 “D” rings, 4 per side, 24″ x 60″ spring assisted manual ramps. Hutch H-9700 spring suspension, 2 each 25,000# axles, 16.5″ x 7″ air brakes w/ABS system, 255/70 R 22.5 tires, 10 stud unimount hubs, pilot mount wheels, 2 speed landing gear. Modular wire harness, rubber mounted sealed lights, conspicuity marking tape, as per DOT requirements. Available options: · Other capacities and widths · Lockable storage · Axle capacities & · Lengths – neck, deck & beaver tail · 12? outriggers configurations · Additional “D” rings · Tire sizes and wheel/rim types · Load heights · Electric over hydraulic ramps · Suspensions/air ride *Note: ABS brakes required on all 35, 40 and 50-ton domestic sales. *Shown with optional wood filled 36″ x 84″ electric over hydraulic ramps.
