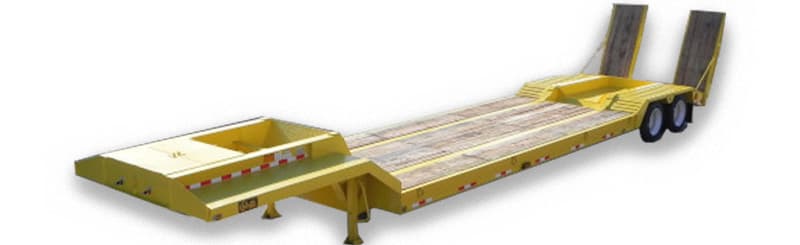

RN-40 • 40 Ton Narrow Neck

RN-40 Narrow Neck Standard Features – 80,000# load capacity, 8’ 6″ wide, narrow width gooseneck, 60 degree slope bed to neck, 28′ 6″ lower deck, 36″ beaver tail, 41’ 9″ overall length. Lower deck height 40″, 2″ oak decking load deck & beaver tail, steel plate above tire area, 8 “D” rings, 4 per side, 24″ x 60″ spring assisted manual ramps. Hutch H-9700 spring suspension, 2 each 25,000# axles, 16.5″ x 7″ air brakes w/ABS system, 255/70 R 22.5 tires, 10 stud unimount hubs, pilot mount wheels, 2 speed landing gear. Modular wire harness, rubber mounted sealed lights, conspicuity marking tape, as per DOT requirements. Available options: · Other capacities and widths · Motor grader ramps · Axle capacities & · Lengths – neck, deck & beaver tail · 12″ outriggers configurations · Additional “D” rings · Tire sizes wheel/rim types · Load heights · Lockable storage · Electric over hydraulic ramps · Suspensions/air ride *Note: ABS brakes required on all 35, 40 and 50-ton domestic sales.
