ClassenPower Rake

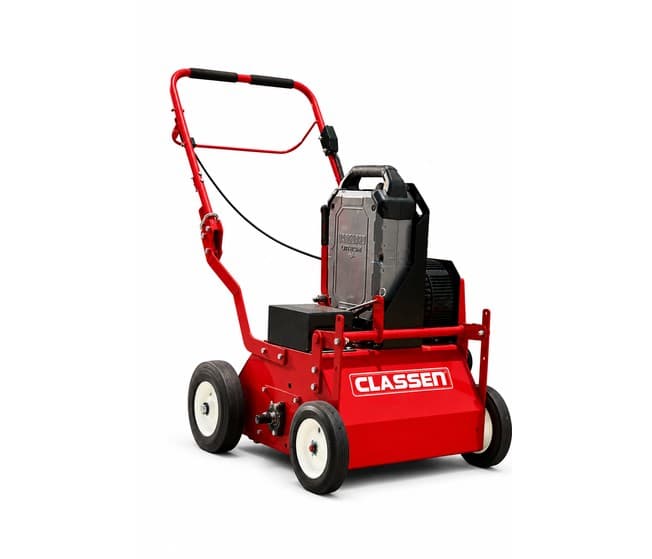

TR-20eV Battery-Powered Turf Rake
Battery-Powered Series
Model TR-20eV
Working Width
20 in
Power Source
Battery
Weight
135 lbs
Features
- The Turf Rake Professionals Trust. Now Battery Powered.
- The Classen TR-20eV delivers the proven performance and commercial-grade durability that have made Classen the trusted choice of turf professionals for decades—now powered by the Vanguard 48V commercial battery platform. Remove thatch, renovate turf or convert the unit for overseeding with the same productivity professionals have come to expect from Classen, while eliminating engine emissions, reducing operating noise, lowering fuel costs and minimizing routine engine maintenance. Built for landscape contractors, rental fleets and turf professionals who demand dependable performance day after day.
- Commercial 48V, 1.5kWh battery delivers dependable power with zero engine emissions and the flexibility to swap batteries between compatible Classen equipment
- Recharge to 80% in just 50 minutes or reach a full charge in approximately 75 minutes, keeping crews productive throughout the day
- Battery is housed in a rugged die-cast aluminum enclosure that helps protect against dust, dirt, debris and the rigors of commercial use
- Backed by Vanguard's 8-year industry-leading commercial battery warranty for long-term confidence and reduced cost of ownership
- 28 Heat-treated flail blades aggressively remove thatch and organic buildup to restore healthier, more vigorous turf
- Easily transform the TR-20eV into a professional overseeder with the optional Seed Box conversion kit, maximizing versatility and equipment utilization
- Adjustable blade spacing goes from standard 11/16" flail blade spacing and adjusts up to 1-3/8" to match varying turf conditions and renovation requirements
- 5-Position single-action height adjustment allows operators to quickly set working depth with a simple, single-lever adjustment for fast changes in the field
- Built Classen tough, heavy-duty commercial construction engineered to withstand years of demanding professional use
Full Specifications
Engine
Power PlantVanguard
Battery TypeSwappable
Battery Capacity1.5 kWh
Battery Charge Time75 min to 100% / 50 min to 80%
Battery Weight26 lbs
IP Rating (per IEC 60529)55
Power SourceBattery
Performance
Working Width20 in
Blade/Reel (Standard)Flail
Number of Blades28
Height Adjustment Positions5
Height Adjustment Increments0.25 in
Drive
TransmissionBelt Drive
Front WheelsSolid Rubber; 8 x 1.75 in
Rear WheelsSolid Rubber; 10 x 2.6 in
Dimensions & Weight
Dimensions44 x 27 x 40 in (L x W x H)
Folded Dimensions31 x 27 x 26 in (L x W x H)
Weight135 lbs
