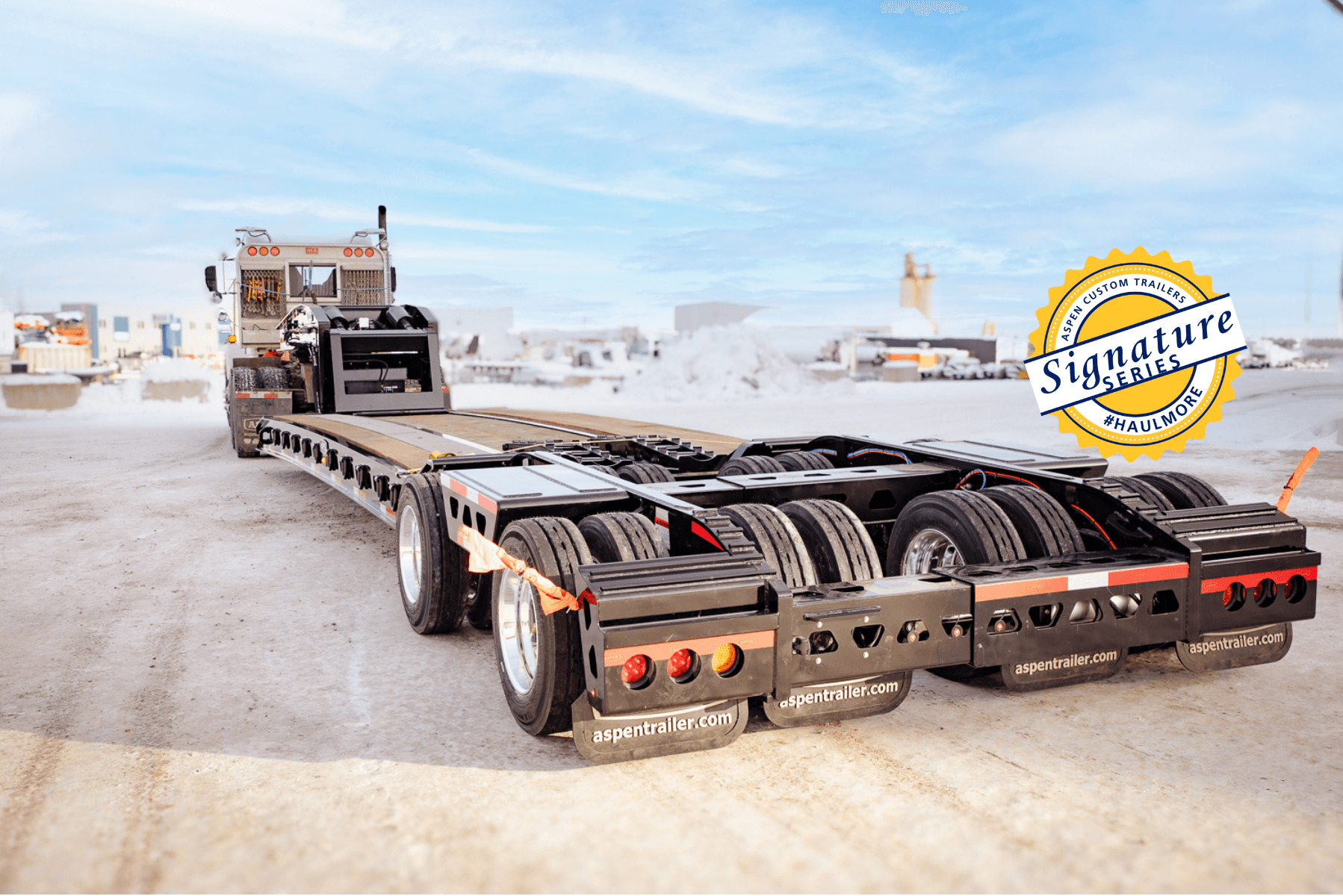

Aspen Q-EXPANDO-HG
Q-Series Series
q-series 45 ton hydraulic gooseneck 16 wheel expando
Capacity
45 Ton
Deck Height
20"
Deck Length22.2 ft
Overall Length46 ft
About This Trailer
Aspen’s 45 Ton
Full Specifications
Dimensions
Load Capacity45 Tons concentrated load over minimum 15’-0” of trailer deck
Deck Width8’-6” nominal
Tire Width8’-11” Expands to 10’-0” (To meet California bonus regulations)
Length Overall46’-0”
Deck Length22’-2”
Tractor Swing Clearance80”,108” – suitable for use with three and four axle tractors
Kingpin to Rear Axle40’-0”, 42’-4”
Fifth Wheel Height50”
Loaded Deck Height20”
Loaded Ground Clearance6”
Main frame
Decking3” Apitong outer, 2” rough fir inner
Running gear
SuspensionAspen 60,000 lbs, poly bushed 16-wheel walking beam suspension
Axle Spacing69”
Tires(16) 215/70R17.5 premium radials
Wheels(16) 6.75 x 17.5 Aluminum
Hubs8-stud hub piloted, to suit steel or aluminum wheels
BrakesPan 17 Air disc
Brake Chambersservice brakes on each axle (type 20)
