Fontaine Trailer

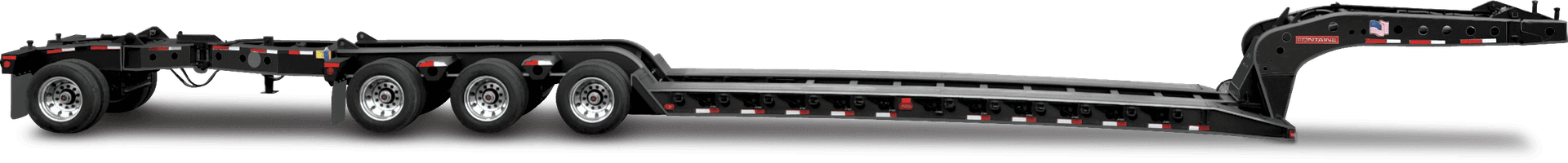

Magnitude 55L Plus
Workhorse Series
Capacity
55 Ton
Deck Height
18"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Full Specifications
Capacity
Standard SpecificationsCapacity55 tons in 16 ft. with 125" swing, flipbox deployed & 3+1 EQ155 tons in 10 ft. with 102" swing & 4 axles close coupled(GAWR & GVWR determine legal payloads)TrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:FLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
Capacity55 tons in 16 ft. with 125" swing, flipbox deployed & 3+1 EQ155 tons in 10 ft. with 102" swing & 4 axles close coupled(GAWR & GVWR determine legal payloads)TrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:FLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
Axle Capacity25,000 lb. nominal capacity per axle lbs
General
TrailerLengthWidth:
DesignHydraulic removable non ground bearing design
Swing radius102 inches (11 feet 11 inches overall gooseneck length)
DeckDeck typeFLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails only
Deck typeFLD
Flooring2 inch nominal apitong - side rails only
BogieDeck to bogie connectionFixedRear bogie height:41 inchesDesign:Covered Rear Bogie:
Deck to bogie connectionFixed
Rear bogie height41 inches
Gooseneck
GooseneckDesignHydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)
Dimensions
Deck width8' 6" or 9" ft
Loaded deck height/clearance18" loaded deck height with 6" clearance in
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"
Standard trailer axles3
Axle spread54.5" or 60" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM Standard
Tire size275/70R 22.5 OEM Standard
