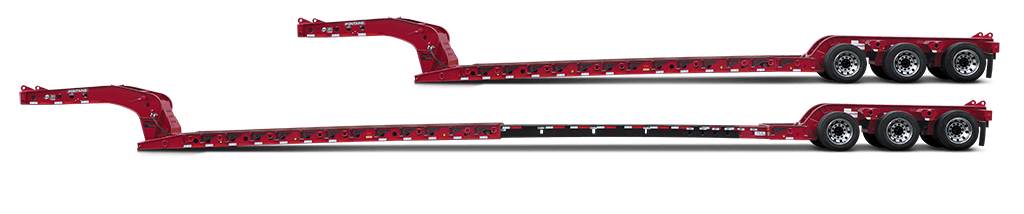

Fontaine Trailer
Magnitude 55MX
Workhorse Series
Capacity
55 Ton
Deck Height
20"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length29 ft
Full Specifications
Capacity
Standard SpecificationsCapacity55 tons in 16-foot length (closed position) with 4 axle close coupled or single axle stinger55 tons in deck length less 2 feet (open position) with 4 axle close coupled or single axle stingerGAWR and GVWR determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:MXDeck length:29’-4†Closed / 50’-4†OpenDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:2 inch nominal apitong ÔøΩfull width, including bunk (closed only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
Capacity55 tons in 16-foot length (closed position) with 4 axle close coupled or single axle stinger55 tons in deck length less 2 feet (open position) with 4 axle close coupled or single axle stingerGAWR and GVWR determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:MXDeck length:29’-4†Closed / 50’-4†OpenDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:2 inch nominal apitong ÔøΩfull width, including bunk (closed only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard tons
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLengthWidth:
DesignHydraulic removable non-ground bearing design
Swing radius102 inches (11 feet 11 inches overall gooseneck length)
DeckDeck typeMXDeck length:29’-4†Closed / 50’-4†OpenDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:2 inch nominal apitong ÔøΩfull width, including bunk (closed only)
Deck typeMX
Flooring2 inch nominal apitong ÔøΩfull width, including bunk (closed only)
BogieDeck to bogie connectionModularRear bogie height:41 inchesDesign:Covered Rear Bogie:
Deck to bogie connectionModular
Rear bogie height41 inches
Gooseneck
GooseneckDesignHydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)
Dimensions
Deck length29’-4†Closed / 50’-4†Open ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance20 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"
Standard trailer axles3
Axle spread54.5" or 60" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM Standard
Tire size275/70R 22.5 OEM Standard
