Fontaine Trailer

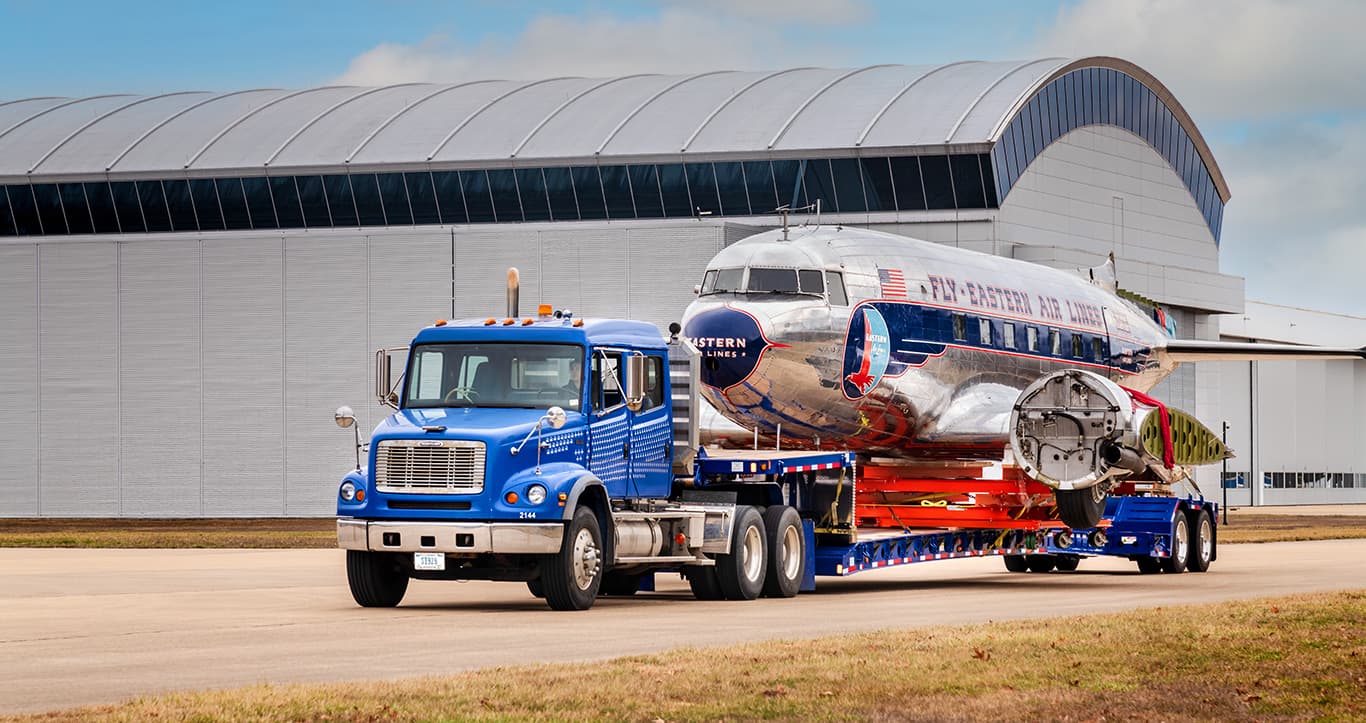

Magnitude 60 MBMD
Workhorse Series
Capacity
60 Ton
Deck Height
23"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Full Specifications
Capacity
Standard SpecificationsCapacity60 tons in 12-foot length with 4th axle close coupled or 3+1 axle configuration - GAWR and tire ratings determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MBMDDeck length:Deck width:Loaded deck height/clearance:23 inches with 6 inches ground clearanceFlooring:2 inch nominal woodAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard lbs
Capacity60 tons in 12-foot length with 4th axle close coupled or 3+1 axle configuration - GAWR and tire ratings determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MBMDDeck length:Deck width:Loaded deck height/clearance:23 inches with 6 inches ground clearanceFlooring:2 inch nominal woodAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard lbs
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLengthWidth:
DesignHydraulic removable non ground bearing design
Swing radius106 inches (12 feet 8 inches overall gooseneck length)
DeckDeck typeMBMDDeck length:Deck width:Loaded deck height/clearance:23 inches with 6 inches ground clearanceFlooring:2 inch nominal wood
Deck typeMBMD
Flooring2 inch nominal wood
BogieDeck to bogie connectionModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:
Deck to bogie connectionModular
Rear bogie height40 7/8 inches to top flange - 36 5/8 inches to top of bolsters
Gooseneck
GooseneckDesignHydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)
Dimensions
Loaded deck height/clearance23 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"
Standard trailer axles3
Axle spread54.5" or 60" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM Standard
Tire size275/70R 22.5 OEM Standard
