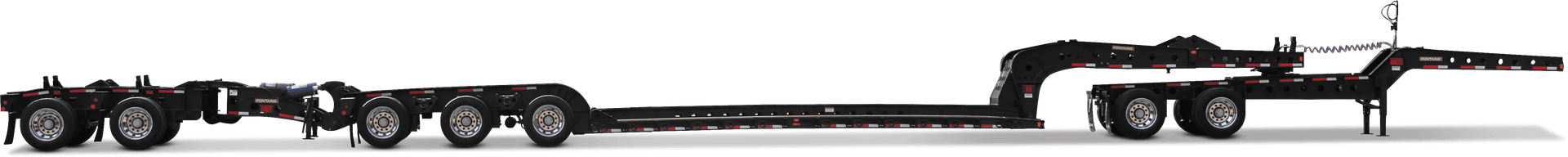

Fontaine Trailer
Magnitude 60HD MDSR
Workhorse Series
Capacity
60 Ton
Deck Height
14.5"
Axles
5-Axle
Gooseneck
Hydraulic Detachable
Deck Length26 ft
Full Specifications
Capacity
Standard SpecificationsCapacity60 tons in 16-feet as a 3+2 axle configuration with flipbox deployed. 60 tons in 12-foot length with 4 axle close coupled. - GAWR and tire ratings determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal wood - side rails onlyAxlesStandard trailer axles:5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"BogieDeck to bogie connection:ModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
Capacity60 tons in 16-feet as a 3+2 axle configuration with flipbox deployed. 60 tons in 12-foot length with 4 axle close coupled. - GAWR and tire ratings determine legal payloadsTrailerLengthWidth:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal wood - side rails onlyAxlesStandard trailer axles:5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"BogieDeck to bogie connection:ModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)
General
TrailerLengthWidth:
DesignHydraulic removable non ground bearing design
Swing radius106 inches (12 feet 8 inches overall gooseneck length)
DeckDeck typeMDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:1.5 inch nominal wood - side rails only
Deck typeMDSR
Flooring1.5 inch nominal wood - side rails only
BogieDeck to bogie connectionModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:
Deck to bogie connectionModular
Rear bogie height43 3/4 inches to top flange - 37 1/2 inches to top of bolsters
Gooseneck
GooseneckDesignHydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)
Dimensions
Deck width8' 6" or 9" ft
Loaded deck height/clearance14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearance
Axles
AxlesStandard trailer axles5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"
Standard trailer axles5
Axle spread60" in
Tires & Wheels
TiresTire size275/70R 22.5 OEM Standard
Tire size275/70R 22.5 OEM Standard
