Fontaine Trailer

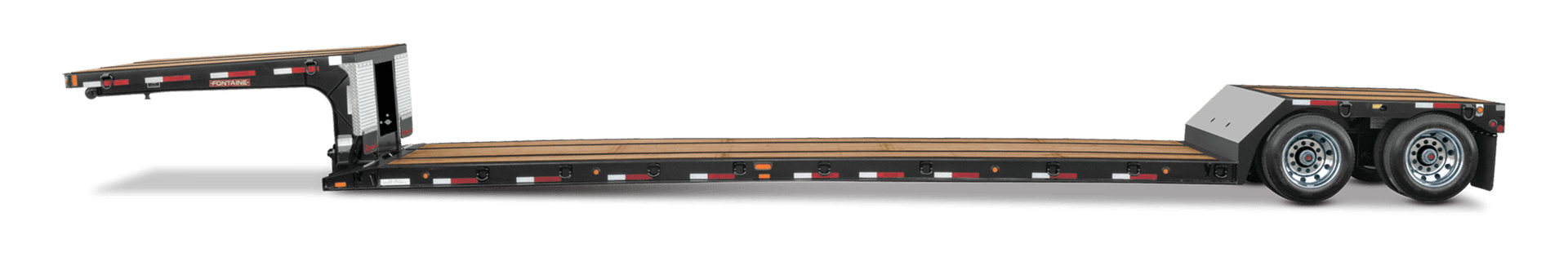

Renegade 14
Renegade Series
Capacity
30 Ton
Deck Height
15"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length29 ft
Full Specifications
Capacity
Standard SpecificationsCapacity30 tons in 16-foot length - GAWR and tire ratings determine legal loads - 35 tons evenly distributedTrailerLength47 feet 11 inchesWidth:102 inches wideGooseneckDesign:Mechanical removable with fifth wheel guide rollers - Figure-8 plate which provides 50 inches loaded fifth wheel height - swing radius of 81 inchesSwing radius:81 inchesDeckDeck type:Standard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Capacity30 tons in 16-foot length - GAWR and tire ratings determine legal loads - 35 tons evenly distributedTrailerLength47 feet 11 inchesWidth:102 inches wideGooseneckDesign:Mechanical removable with fifth wheel guide rollers - Figure-8 plate which provides 50 inches loaded fifth wheel height - swing radius of 81 inchesSwing radius:81 inchesDeckDeck type:Standard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength47 feet 11 inchesWidth:102 inches wide
Length47 feet 11 inches
Width102 inches wide
DesignMechanical removable with fifth wheel guide rollers - Figure-8 plate which provides 50 inches loaded fifth wheel height - swing radius of 81 inches
Swing radius81 inches
DeckDeck typeStandard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)
Deck typeStandard FLD
Flooring2 inch nominal Apitong wood (full width)
BogieDeck to bogie connectionFixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connectionFixed
Rear bogie height41.5 inches
Covered Rear BogieRear bogie platform with 1 1/8 inch wood floor
Gooseneck
GooseneckDesignMechanical removable with fifth wheel guide rollers - Figure-8 plate which provides 50 inches loaded fifth wheel height - swing radius of 81 inchesSwing radius:81 inches
Dimensions
Deck length29 feet 2 inches clear deck length ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loaded
Axles
AxlesStandard trailer axles2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"
Standard trailer axles2
Axle spread50" in
Tires & Wheels
TiresTire size255/70R 22.5 H ply OEM Standard
Tire size255/70R 22.5 H ply OEM Standard
