Fontaine Trailer

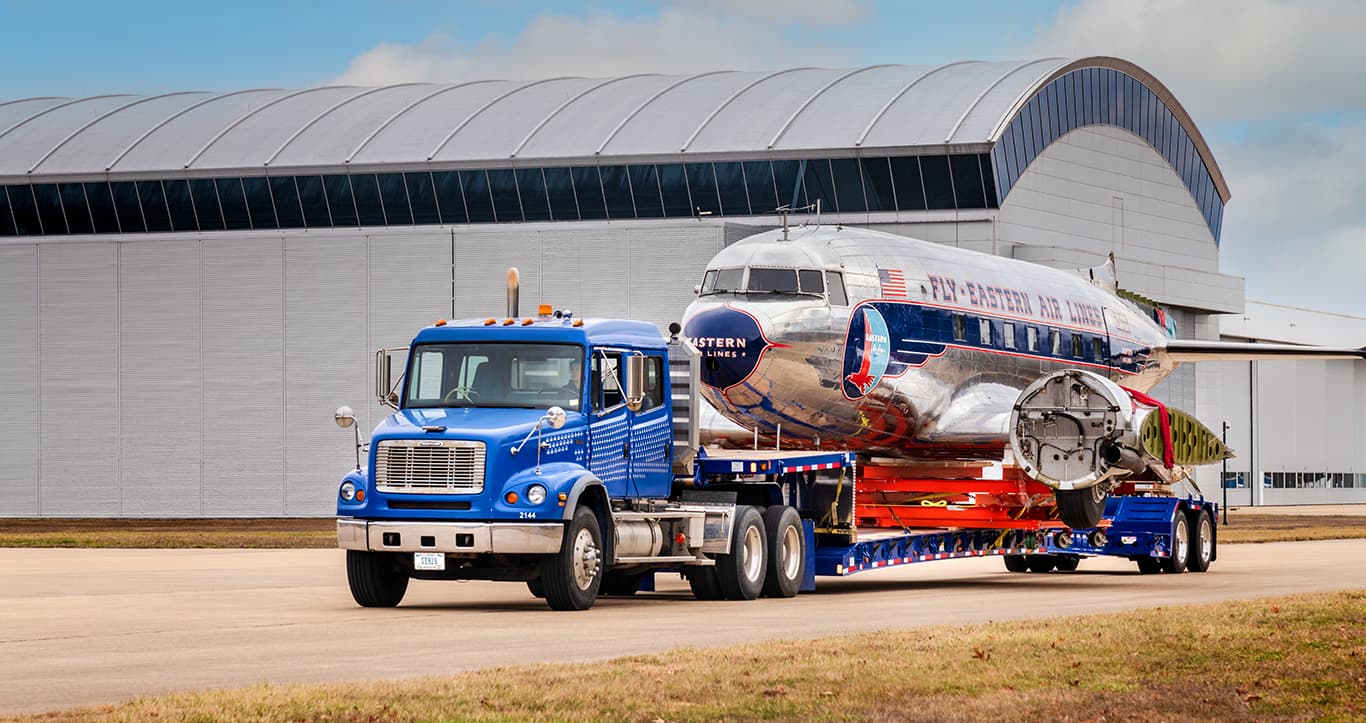

Renegade N12
Renegade Series
Capacity
30 Ton
Deck Height
12"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length32 ft
Full Specifications
Capacity
Standard SpecificationsCapacity30 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength53 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inchesDeckDeck type:Standard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Capacity30 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength53 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inchesDeckDeck type:Standard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength53 feet 0 inchesWidth:102 inches wide
Length53 feet 0 inches
Width102 inches wide
DesignNarrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operation
Swing radius84 inches
DeckDeck typeStandard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)
Deck typeStandard FLD
Flooring1 3/8 inch nominal Apitong wood (full width)
BogieDeck to bogie connectionFixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connectionFixed
Rear bogie height41.5 inches
Covered Rear BogieRear bogie platform with 1 1/8 inch wood floor
Gooseneck
GooseneckDesignNarrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inches
Dimensions
Deck length32 feet 11 inches clear deck length ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance12 inches with 4 inch ground clearance (Fully Loaded)
Axles
AxlesStandard trailer axles2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"
Standard trailer axles2
Axle spread50" in
Tires & Wheels
TiresTire size255/70R 22.5 H ply OEM Standard
Tire size255/70R 22.5 H ply OEM Standard
