Fontaine Trailer

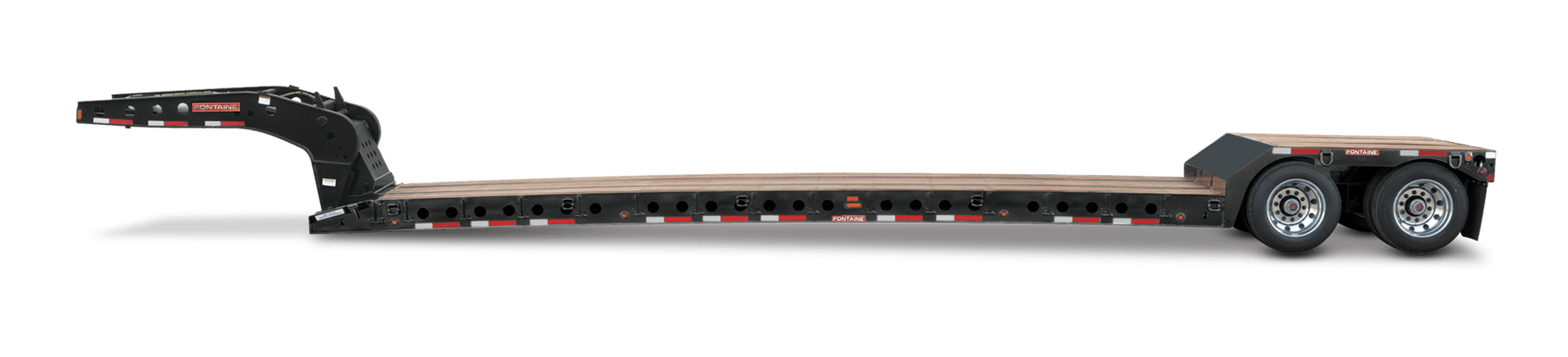

Renegade N18
Renegade Series
Capacity
40 Ton
Deck Height
18"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length29 ft
Full Specifications
Capacity
Standard SpecificationsCapacity40 tons (80,000 lbs) evenly distributed - GAWR and tire ratings determine legal loadsTrailerLength50 feet 1 inchWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inchesDeckDeck type:Standard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard lbs
Capacity40 tons (80,000 lbs) evenly distributed - GAWR and tire ratings determine legal loadsTrailerLength50 feet 1 inchWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inchesDeckDeck type:Standard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard lbs
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength50 feet 1 inchWidth:102 inches wide
Length50 feet 1 inch
Width102 inches wide
DesignNarrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operation
Swing radius102 inches
DeckDeck typeStandard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)
Deck typeStandard FLD
Flooring1 3/8 inch nominal wood (full width)
BogieDeck to bogie connectionFixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connectionFixed
Rear bogie height40 inches
Covered Rear BogieRear bogie platform with 1 1/8 inch wood floor
Gooseneck
GooseneckDesignNarrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inches
Dimensions
Deck length29 feet clear deck length ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance18 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles2
Axle spread54.5" in
Tires & Wheels
TiresTire size255/70R 22.5 H ply OEM Standard
Tire size255/70R 22.5 H ply OEM Standard
