Fontaine Trailer

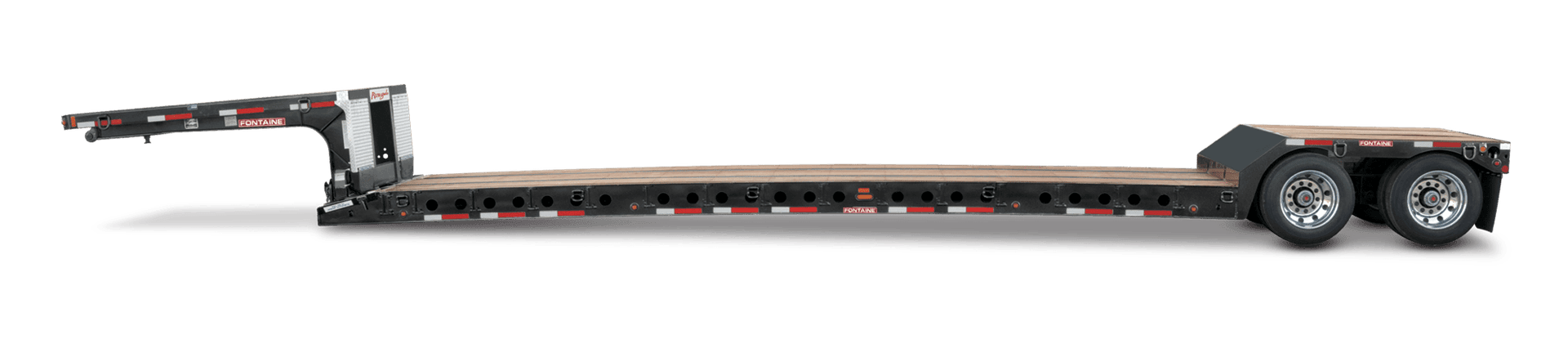

Renegade X20
Renegade Series
Capacity
40 Ton
Deck Height
20"
Axles
2-Axle
Gooseneck
Hydraulic Detachable
Deck Length29 ft
Full Specifications
Capacity
Standard SpecificationsCapacity40 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Extendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Capacity40 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Extendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard tons
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wide
Length47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53
Width102 inches wide
DesignMechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loaded
Swing radius81 inches
DeckDeck typeExtendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)
Deck typeExtendable FLD
Flooring1 3/8 inch nominal Apitong wood (full width)
BogieDeck to bogie connectionFixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connectionFixed
Rear bogie height41 inches
Covered Rear BogieRear bogie platform with 1 1/8 inch wood floor
Gooseneck
GooseneckDesignMechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inches
Dimensions
Deck length29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feet ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance20 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles2
Axle spread54.5" in
Tires & Wheels
TiresTire size255/70R 22.5 H ply OEM Standard
Tire size255/70R 22.5 H ply OEM Standard
