Fontaine Trailer

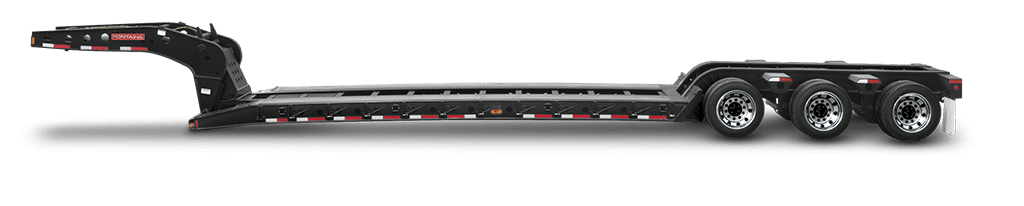

Workhorse 50
Workhorse Series
Capacity
50 Ton
Deck Height
20"
Axles
3-Axle
Gooseneck
Hydraulic Detachable
Deck Length25 ft
Full Specifications
Capacity
Standard SpecificationsCapacity50 tons in 12-foot length, 52 tons in 16 feet length - GAWR and GVWR determine legal payloadsTrailerLength50 feet 1 inchWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 Economical OEM Standard lbs
Capacity50 tons in 12-foot length, 52 tons in 16 feet length - GAWR and GVWR determine legal payloadsTrailerLength50 feet 1 inchWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 Economical OEM Standard lbs
Axle Capacity25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. lbs
25,000 lb. nominal capacity per axle NOTEGAWR determined by suspension type, brakes, tires and other components.
General
TrailerLength50 feet 1 inchWidth:8 feet 6 inches
Length50 feet 1 inch
Width8 feet 6 inches
DesignHydraulic removable non-ground bearing design
Swing radius102 inches (11 feet 11 inches overall gooseneck length) - NGB
DeckDeck typeFLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)
Deck typeFLD
Flooring1.5 inch nominal wood (side rails only)
BogieDeck to bogie connectionFixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel covers
Deck to bogie connectionFixed
Rear bogie height40 inches to top flange 37 inches to top of bolsters
Covered Rear BogieWeld-on load bearing wheel covers
Gooseneck
GooseneckDesignHydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGB
Dimensions
Deck length25 feet clear deck length, 24 feet optional ft
Deck width8 feet 6 inches ft
Loaded deck height/clearance20 inches with 6 inches ground clearance
Axles
AxlesStandard trailer axles3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles3
Axle spread54.5" in
Tires & Wheels
TiresTire size255/70R 22.5 Economical OEM Standard
Tire size255/70R 22.5 Economical OEM Standard
